Ergo-Pro Trima / Ålo Walvoil Joystick

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM2026

  Manufacturer

  Characteristics

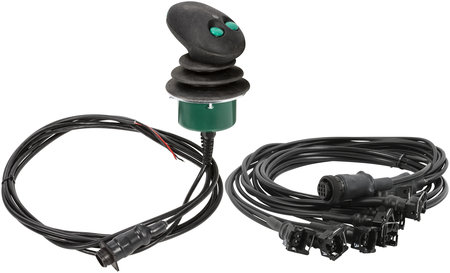

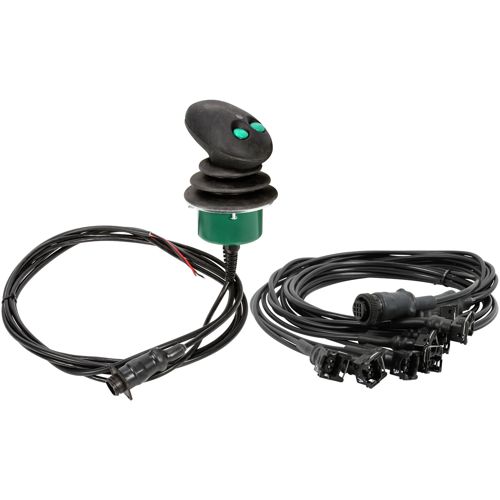

  A digital control lever with built-in electronics for controlling hydraulic valves.
  The controller can be installed in a new system or replace an old one, e.g. Quicke, Trima Walvoil control system.
  This control unit can completely replace the original system.
  Pre-programmed for front loaders with Walvoil system.
  The PRO handle has a built-in 2.5 m cable, followed by a suitable cable kit (FM2030), the cable kit is suitable for the original connections.

  Features:
  - good working ergonomics
  - easy installation
  - easy to program user-/device-specific adjustments and settings
  - extensive adjustment options, e.g. for dead zones, initial and maximum speed control, and motion-specific acceleration and deceleration ramps
  - suitable for controlling most electric valves on the market
  - if the joystick is equipped with additional control buttons/switches, it can control 6 functions simultaneously
  - the overload control automatically shuts off the power at incorrect values
  - all electronics are in the joystick
  - LED light flashes if something is wrong
  - automatic reset after error correction
  - protected against incorrect connection of the power supply
  - temperature and voltage compensation
  - can be programmed via Bluetooth

  Technical specifications:
  - voltage: 12 - 24 V
  - control: PMW 100 Hz
  - max. 1500 mA
  - 8 channels: 6 analog (proportional functions) and 2 digital (on-off)
  - handle in molded plastic with fiberglass reinforcement
  - construction in stainless steel and aluminum
  - mounting holes: 4 pcs 6 mm
  - height: 185 mm, Ø 120 mm
  - weight: 720 g
