  Product IDFM2025H

  Manufacturer

  Characteristics

  - a digital control lever with built-in electronics for controlling hydraulic valves
  - the controller can be installed in a new system or replace an old one, e.g. IPS / VCU / EHC control system with a handle
  - pre-programmed for use with a forestry loader, but also suitable for other lifts of similar style

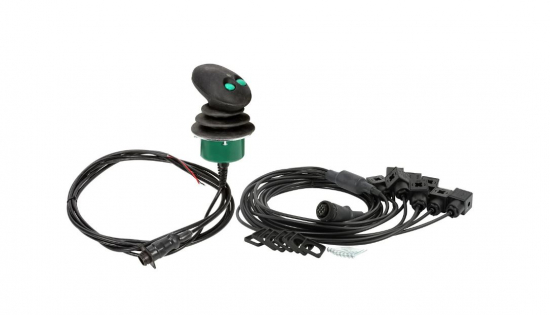

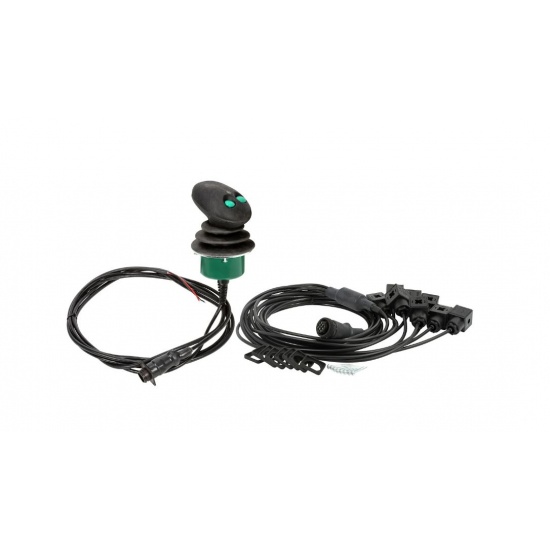

  - the PRO handle has an integrated 2.5 m cable and a Hirschmann (FM2031) cable set
  - this control unit can be used to replace e.g. the control system on an old machine with an A connector (Hirschmann)

  Advantages and features:
  - good work ergonomics
  - easy installation
  - easy to program user-specific adjustments and settings
  - extensive adjustment options, e.g. for dead zones, initial and maximum speed control, and movement-specific acceleration and deceleration ramps
  - suitable for controlling most electric valves on the market
  - if the joystick is equipped with additional control buttons/switches, it is possible to control 6 functions simultaneously
  - the overload control automatically shuts off the power at incorrect values
  - all electronics are in the joystick
  - LED light flashes if something is wrong
  - automatic reset after correction of errors
  - protected against incorrect connection of power supply
  - temperature and voltage compensation

  Technical data:
  - voltage 12 - 24 V
  - control with PMW 100 Hz
  - max. 1500 mA
  - 8 channels: 6 analog (proportional functions) and 2 digital (on-off)
  - handle in molded plastic with glass fiber reinforcement
  - construction in stainless steel and aluminum
  - mounting holes 4 pcs 6 mm
  - height 185 mm, Ø 120 mm
  - weight 720 g
