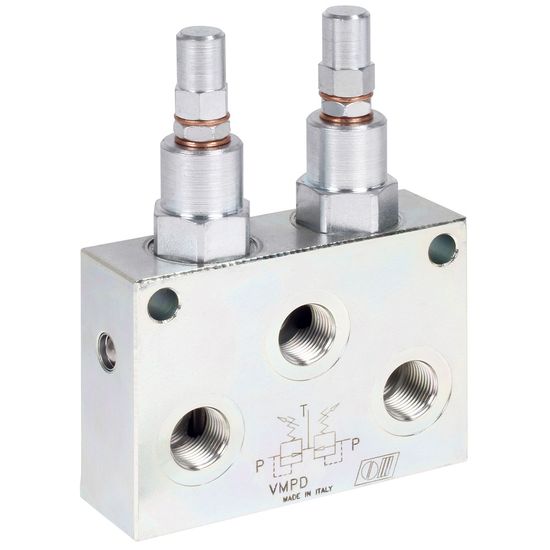

Double Pressure relief valve 3/8" 98X132mm

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDH80732-180

  Manufacturer

  CharacteristicsType: VMPD
  Adjustment range: 10-180 bar

  The pressure reducing valve is used to protect the system from damage due to overpressure.
  Both sections have a common tank connection.
  The relief valve is factory set at 90 bar but can be adjusted from 10 to 180 bar.

  Technical specification:
  - type: VMPD
  - material: zinc-coated steel
  - BunaN sealing
  - connection P T: G 3/8"
  - max. flow rate: 45 l/min

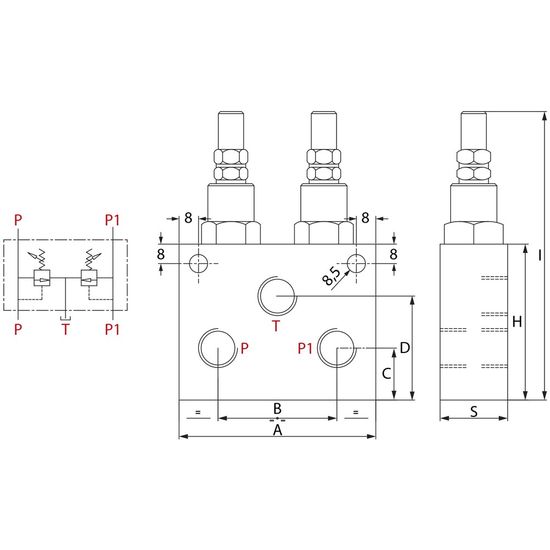

  Refer to the attached image for specific dimensions:
  - A: 98 mm
  - B: 62 mm
  - C: 24 mm
  - D: 46 mm
  - H: 70 mm
  - I: 132 mm
  - S: 30 mm
