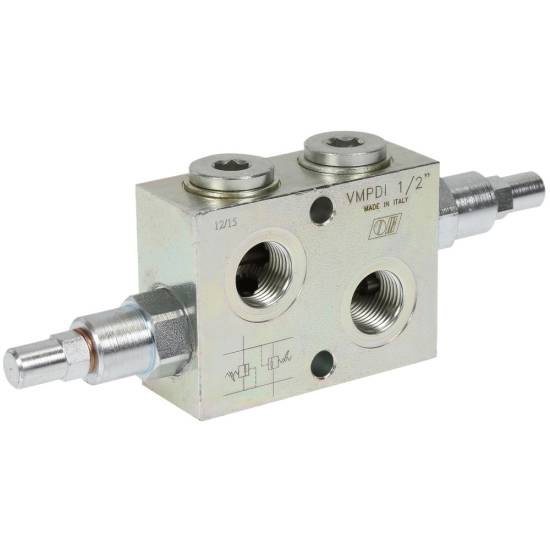

Double Pressure relief valve 1/2" - 10-180 bar

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80738-180

  ManufacturerOLEODINAMICA MARCHESINI

  CharacteristicsType: VMPDI
  Adjustment range: 10-180 bar

  Pressure relief valve is used to protect the system from damage due to overpressure.
  The relief valve is factory set at 90 bar but can be adjusted from 10 to 180 bar.

  Technical specification:
  - type: VMPDI
  - material galvanized steel
  - BunaN seal
  - connection V1 V2: G 1/2"
  - max. flow rate: 70 l/min

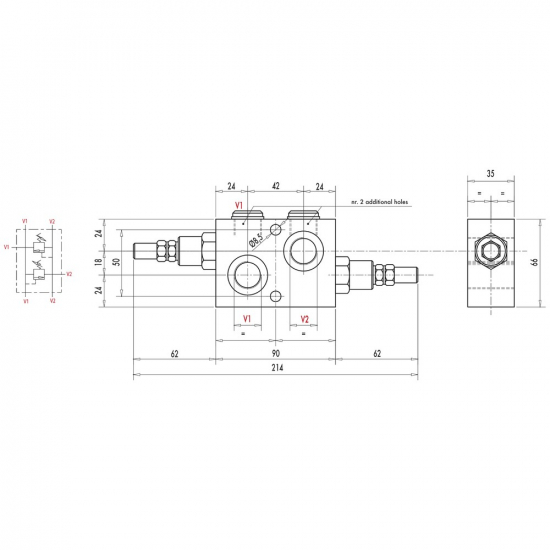

  Refer to attached image for specific measurements
