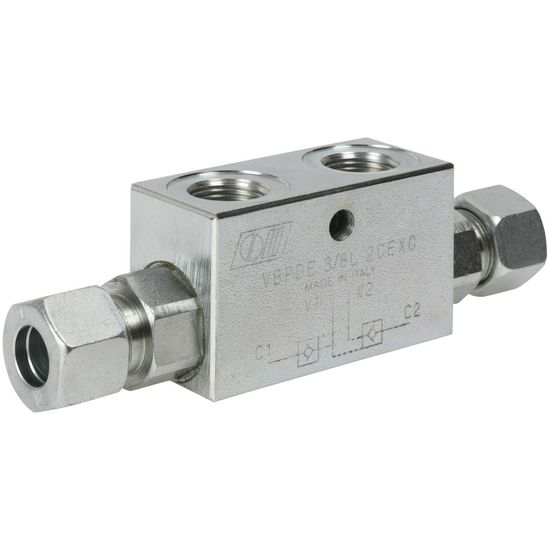

Double Lock Valve 3/8" - max. 30 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80110

  Manufacturer

  CharacteristicsType: VBPDE L 2 CEXC
  Max pressure: 350 bar

  Double lock valve where the driving pressure on one side opens the lockable valve on the other side.
  With the valve, changes in the cylinder setting due to, for example, spindle leakage from the control valve can be prevented.

  Technical specification:
  - type: VBPDE L 2 CEXC
  - tube connection DIN 2353
  - material zinc-coated steel
  - BunaN-seal
  - connection V1 V2: G 3/8"
  - connection C1 C2: 12L
  - max. flow: 30 l/min
  - max. pressure: 350 bar
  - opening pressure: 4 bar

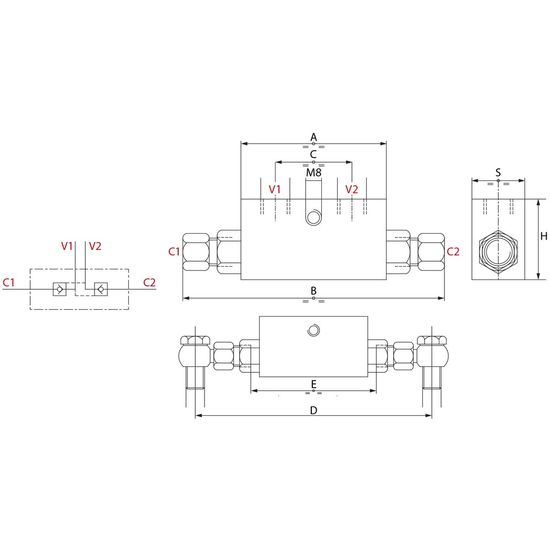

  See attached image for specific dimensions:
  - A: 64 mm
  - B: 125 mm
  - C: 36 mm
  - D: 166 mm
  - E: 84 mm
  - H: 40 mm
  - S: 30 mm
