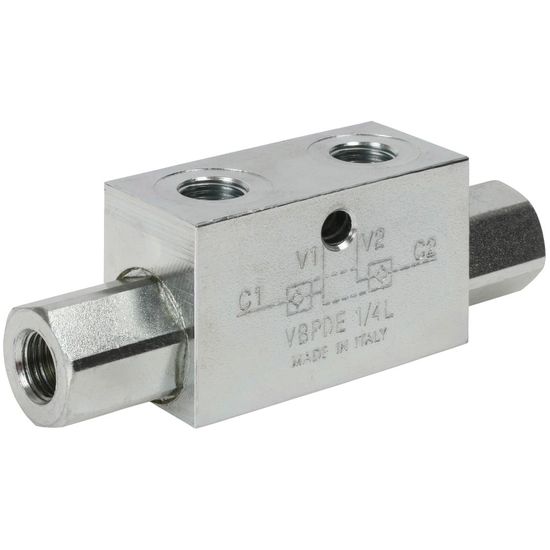

Double Lock Valve 1/4" - max. 20 l/min 40X113mm

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDH80010

  Manufacturer

  CharacteristicsType: VBPDE L
  Max pressure: 350 bar

  Double check valve where the driving pressure on one side opens the lockable valve on the other side.
  With the valve, changes in cylinder settings due to, for example, spindle leakage from the control valve can be prevented.

  Technical specification:
  - type: VBPDE L
  - material galvanized steel
  - BunaN seal
  - connection V1 V2: G 1/4"
  - connection C1 C2: G 1/4"
  - max. flow: 20 l/min
  - max. pressure: 350 bar
  - opening pressure: 4 bar

  See attached image for specific dimensions:
  - A: 64 mm
  - B: 113 mm
  - C: 36 mm
  - D: 8 mm
  - H: 40 mm
  - S: 30 mm
