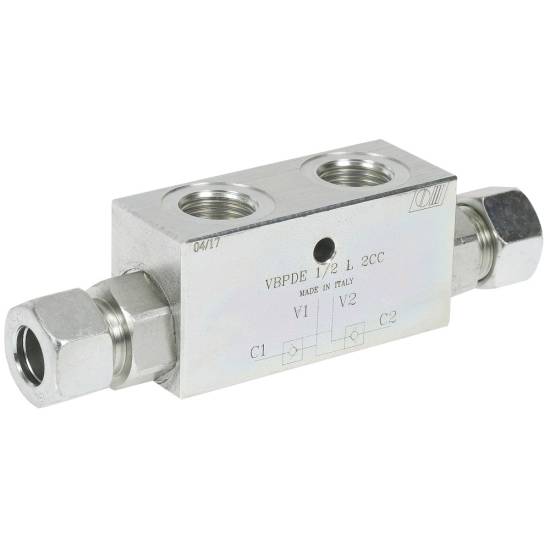

Double Lock Valve 1/2" - max. 50 l/min Max 350 bar

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80135

  ManufacturerOLEODINAMICA MARCHESINI

  CharacteristicsType: VBPDE L 2 CC
  Max pressure: 350 bar

  Double lock valve where the pressure on one side opens the lockable valve on the other side.
  With the valve, changes in cylinder settings due to e.g. spindle leakage from the control valve can be prevented.

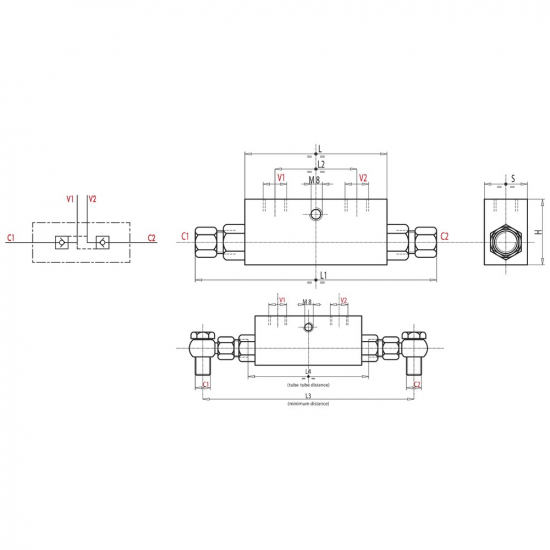

  Technical specification:
  - type: VBPDE L 2 CC
  - pipe connection DIN 2353
  - material galvanized steel
  - BunaN seal
  - connection V1 V2: G 1/2"
  - connection C1 C2: 15 L
  - pilot ratio 1:5
  - max. flow rate: 50 l/min
  - max. pressure: 350 bar
  - opening pressure: 3 bar
