Double Lock Valve 1/2" - max. 50 l/min 45X142mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80030

  Manufacturer

  CharacteristicsType: VBPDE L
  Max pressure: 350 bar

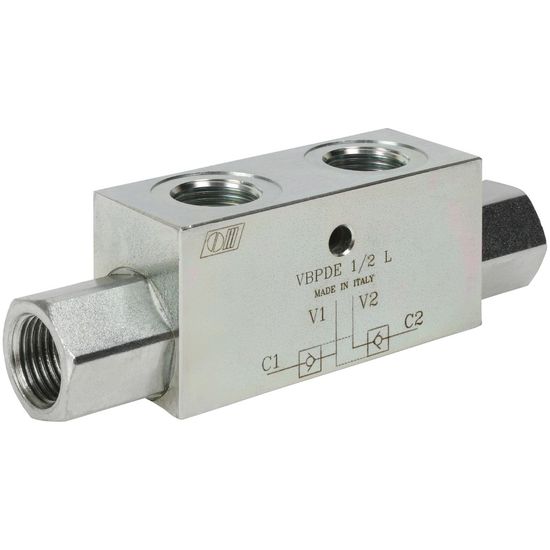

  Double lock valve where the driving pressure on one side opens the lockable valve on the other side.
  With the valve, changes in the cylinder setting due to, for example, spindle leakage from the control valve can be prevented.

  Technical specification:
  - type: VBPDE L
  - material zinc-coated steel
  - BunaN-seal
  - connection V1 V2: G 1/2"
  - connection C1 C2: G 1/2"
  - max. flow: 50 l/min
  - max. pressure: 350 bar
  - opening pressure: 6 bar

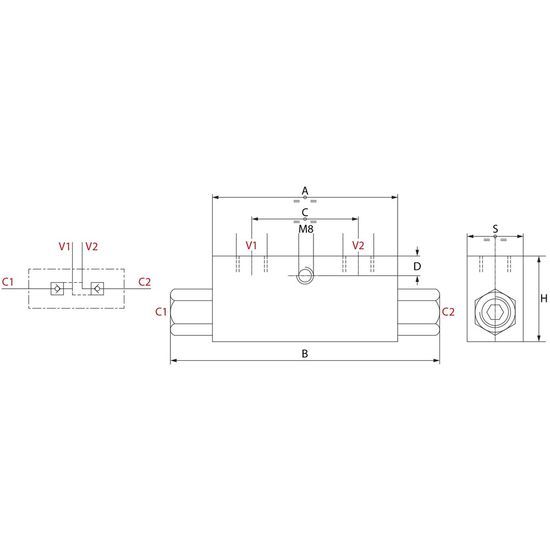

  See attached image for specific dimensions:
  - A: 90 mm
  - B: 142 mm
  - C: 45 mm
  - D: 12,5 mm
  - H: 45 mm
  - S: 35 mm
