Directional valve 3/8" - max. 40 l/min 7-COIL

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDP407A1

  ManufacturerHydro-Pack

  CharacteristicsType: 7 sections
  Double-acting

  Affordable directional valve with seven levers from Finnish Nordvalves, with over 50 years of experience in hydraulic valves and components. Perfect for operating hydraulic implements with multiple double-acting functions.

  P40 monoblock is a manually or wire controlled directional valve that returns to center position.
  The valve package is equipped with a pressure limiter and check valve. The valve can be connected in series (N-port BSP 1/2").

  Technical specification:
  - type: 7 sections
  - sections: double-acting
  - material: cast iron housing, sections of chrome-plated carbon steel
  - max. flow 40 l/min
  - max. working pressure 300 bar
  - max. pressure return line 50 bar
  - working port BSP 3/8"
  - pressure and return port BSP 1/2"

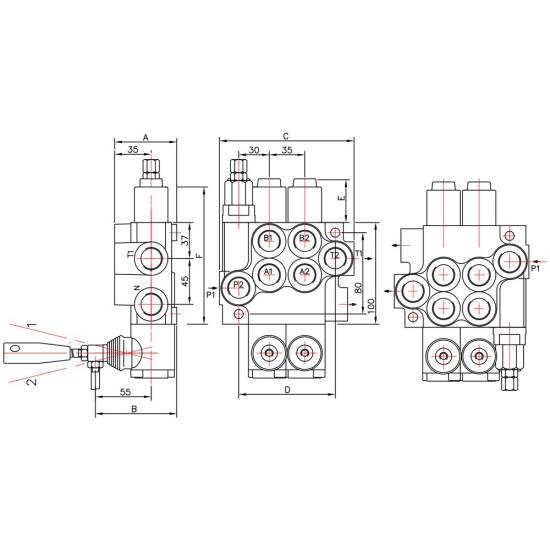

  - dimension A: 60 mm
  - dimension B: 80 mm
  - dimension C: 304 mm
  - dimension D: 272 mm
