Directional valve 3/8" - max. 40 l/min 4-COIL

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDP404A1

  ManufacturerHydro-Pack

  CharacteristicsType: 4 sections
  Double-acting

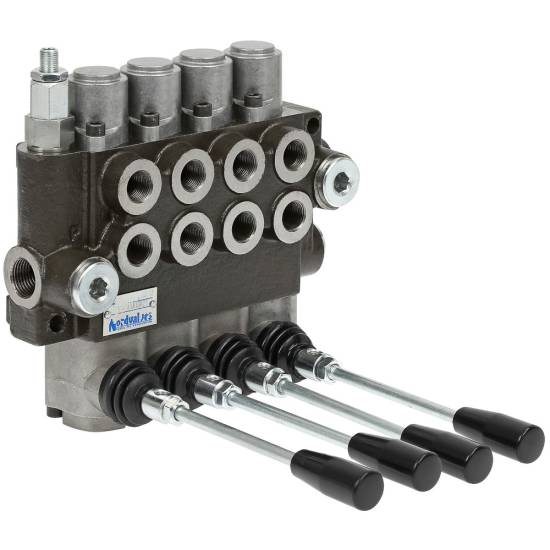

  P40 monoblock is a manual or cable-controlled directional valve that returns to center position.
  The valve package is equipped with a pressure limiter and check valve. The valve can be series-connected (N-port BSP 1/2").

  Technical specification:
  - 4 sections
  - sections: double-acting
  - material: cast iron housing, sections of chrome steel
  - max. flow 40 l/min
  - max. working pressure 300 bar
  - max. return line pressure 50 bar
  - work port BSP 3/8"
  - pressure and return ports BSP 1/2"

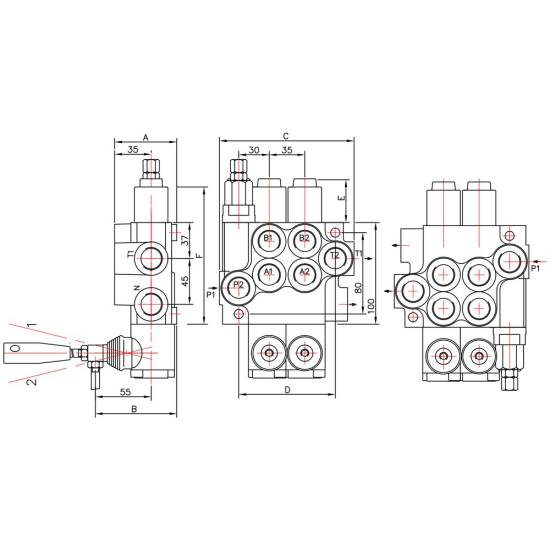

  - dimensions A: 60 mm
  - dimensions B: 80 mm
  - dimensions C: 199 mm
  - dimensions D: 167 mm
