Directional valve 3/8" 12V

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDAZ501AES312

  ManufacturerNORDVALVES

  CharacteristicsMax flow: 50 l/min
  Sections: double-acting

  Technical specification:

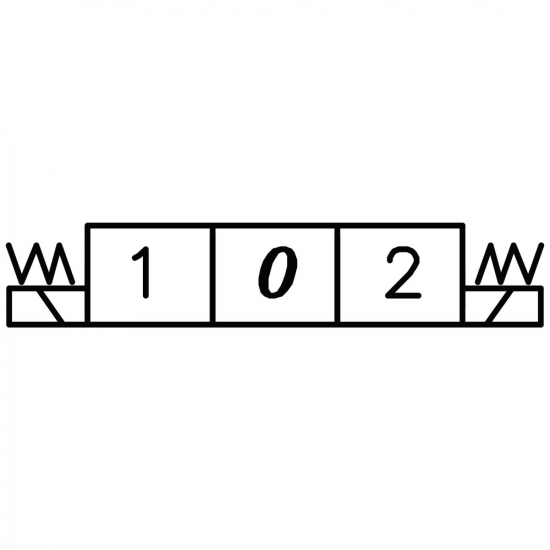

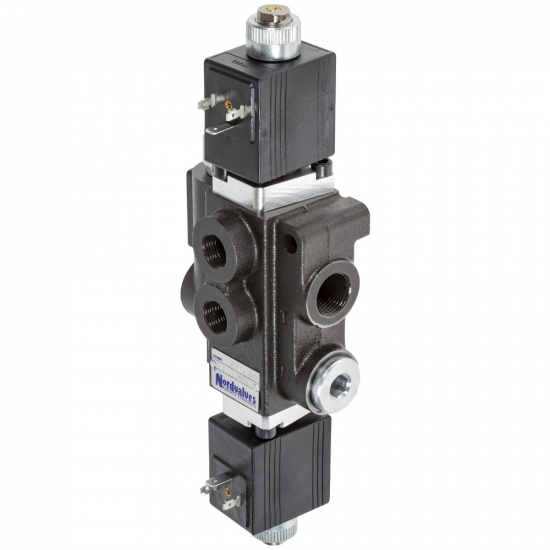

  - Z50 solenoid-operated directional control valve
  - spring-centered to neutral
  - material: cast iron housing, sections of chrome-plated carbon steel

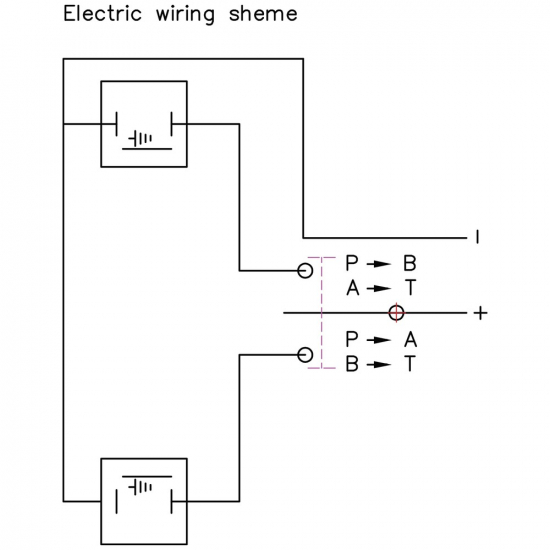

  - voltage: 12 V (solenoid power 37 W, duty cycle 100%)
  - type: 1 section
  - sections: double acting
  - max. flow: 50 l/min
  - max. pressure P: 250 bar / T: 50 bar / A, B: 300 bar
  - working port G: 3/8" (A and B)
  - pressure and tank port G: 1/2" (P and T)
