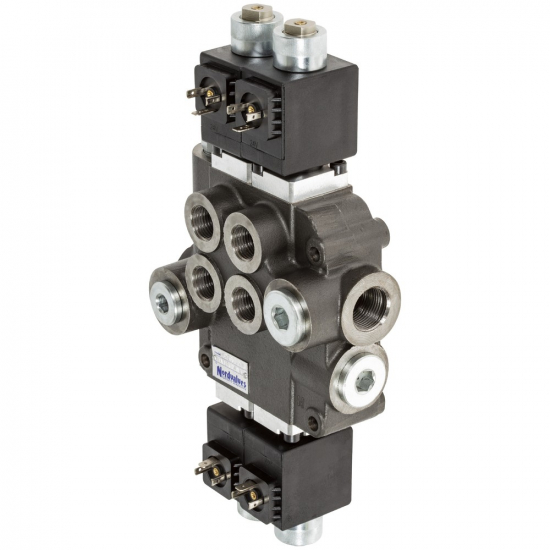

Directional Valve 1/2" 24V 2-SPOLE

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDZ802AES324

  Manufacturer

  CharacteristicsMax flow: 80 l/min
  Sections: double-acting

  Technical specifications:
  - Z80 solenoid controlled directional valve
  - spring-centered to neutral position
  - material: cast iron housing, chrome steel sections
  - voltage: 24 V (solenoid power 37 W, duty cycle 100%)
  - type: 2 sections
  - sections: double acting
  - max. flow rate: 80 l/min
  - max. pressure P: 250 bar / T: 50 bar / A, B: 300 bar
  - work port G: 1/2" (A and B)
  - pressure port G: 1/2" (P)
  - tank port G: 3/4" (T)
