Directional Control Valve 1/2" max - 80 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDP804A1

  ManufacturerHydro-Pack

  CharacteristicsType: 4 sections
  Double-acting

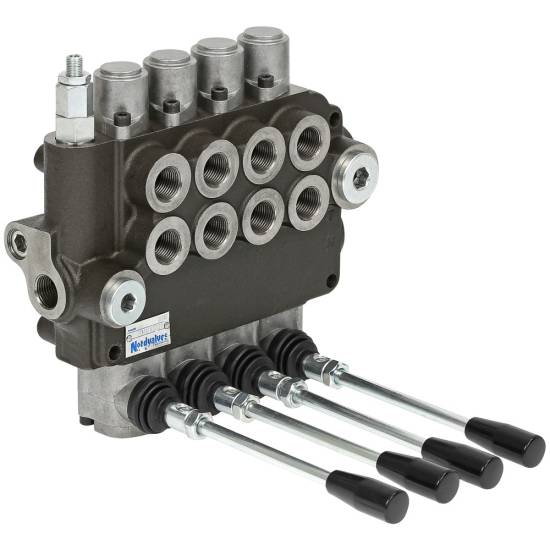

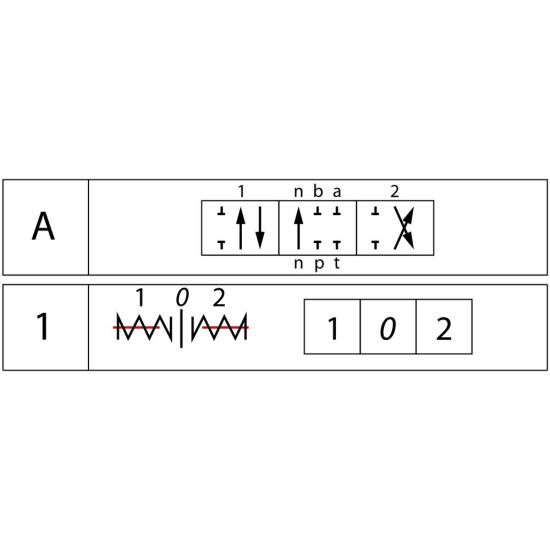

  P80 monoblock is a manual or cable-operated directional control valve that returns to the center position.
  The valve package is equipped with a pressure limiter and check valve. The valve can be connected in series (N-port BSP 3/4").

  Technical specifications:
  - type: 4 sections
  - sections: double-acting
  - material: cast iron housing, sections of chromed carbon steel
  - max. flow 80 l/min
  - max. working pressure 300 bar
  - max. return line pressure 50 bar
  - working and return port BSP 1/2"
  - return port BSP 3/4"

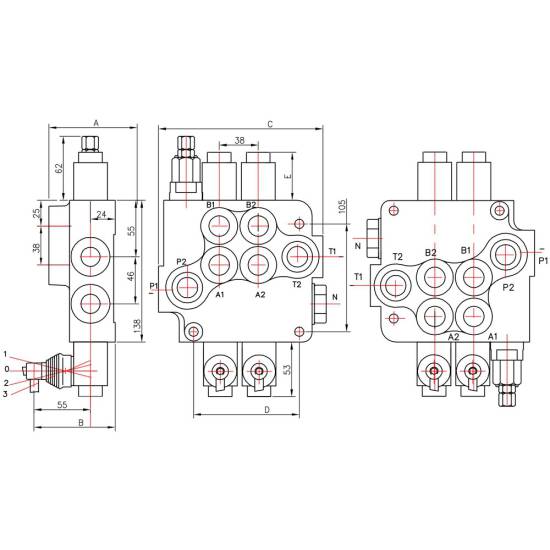

  - dimensions A: 80 mm
  - dimensions B: 94 mm
  - dimensions C: 236 mm
  - dimensions D: 179 mm
