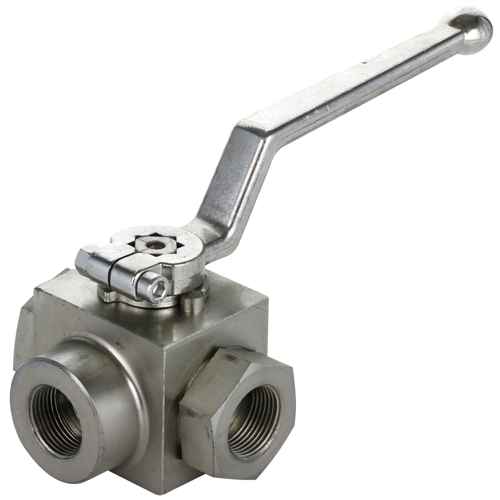

3-way ball valve BSP 1/2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID3BK08

  Manufacturer

  CharacteristicsType: L-Drilled
  Max pressure: 500 bar

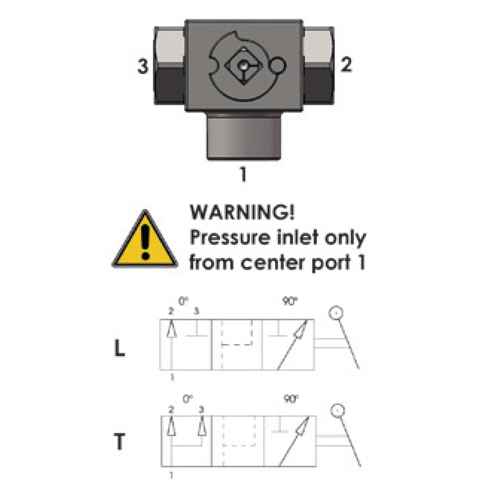

  L-bored 3-way valve. Note that pressure can only be connected from the central port.

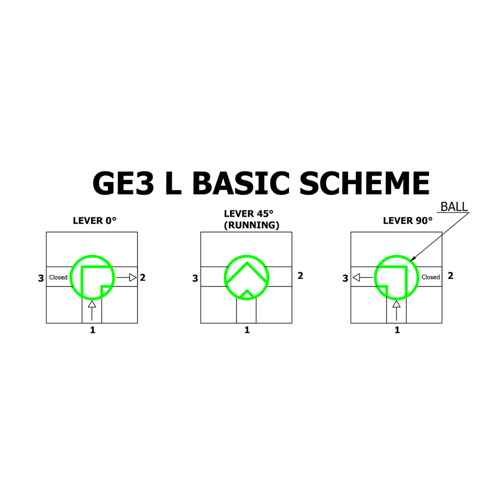

  With this ball valve, you can redirect the flow depending on the port to be used.

  Technical specification:
  - type L-bored
  - material galvanized steel
  - operating temperature from -20 to +100 °C
  - hose DN 12
  - thread G 1/2"
  - max. pressure 500 bar

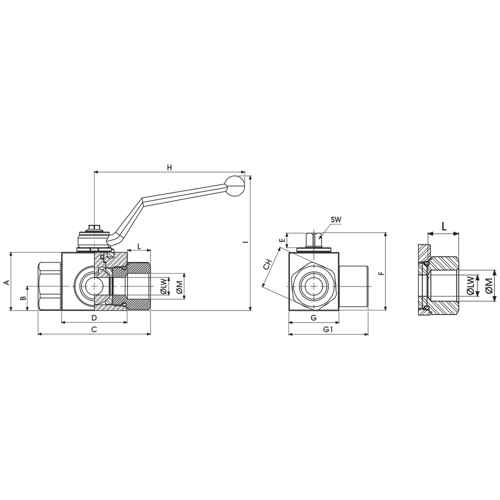

  Refer to image no. 2 for specific dimensions:
  - A: 43 mm
  - B: 18 mm
  - C: 83 mm
  - D: 48.4 mm
  - E: 11 mm
  - F: 57 mm
  - G: 37 mm
  - G1: 58.5 mm
  - H: 110 mm
  - I: 99.5 mm
  - L: 17 mm
  - ØM: G 1/2"
  - CH: 32 mm
  - SW: 9 mm
  - ØLW: 13 mm
  - weight: 0.82 kg
