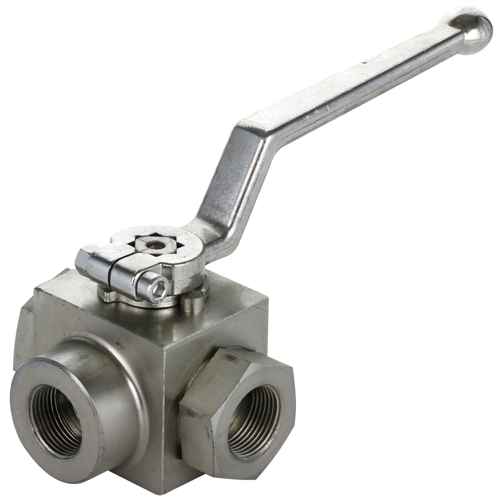

3-way ball valve BSP 1"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID3BK16

  Manufacturer

  CharacteristicsType: L-drilled
  Max pressure: 250 bar

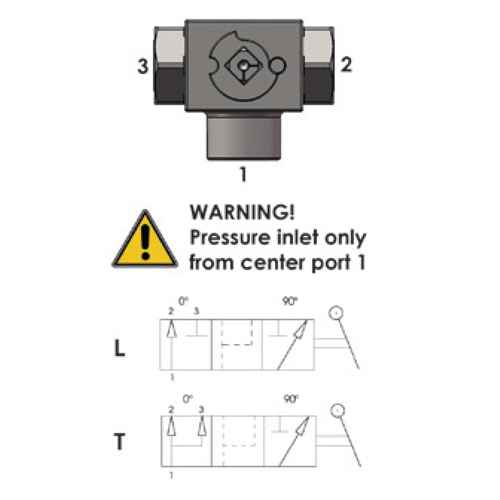

  L-bored 3-way valve. Please note that pressure can only be connected from the middle port.
  With this ball valve, you can redirect the flow depending on which port is to be used.

  Technical specification:
  - type L-bored
  - material galvanized steel
  - hose DN 25
  - thread G 1"
  - max. pressure 250 bar

  See image no. 2 for specific dimensions:
  - A: 65 mm
  - B: 12 mm
  - C: 114 mm
  - D: 65 mm
  - E: 86 mm
  - F: 150 mm
  - G: 104 mm
  - H: 46 mm
