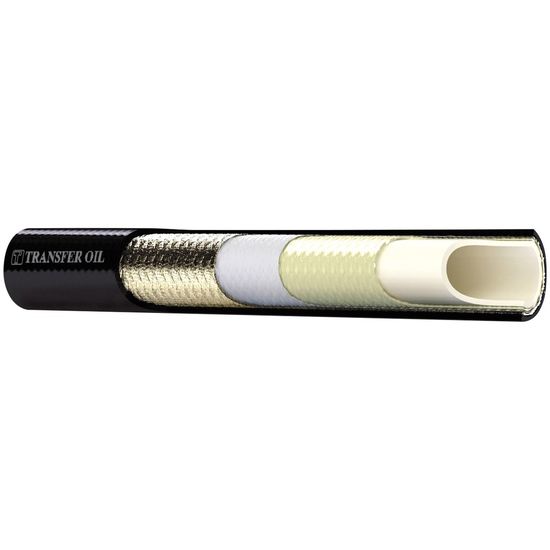

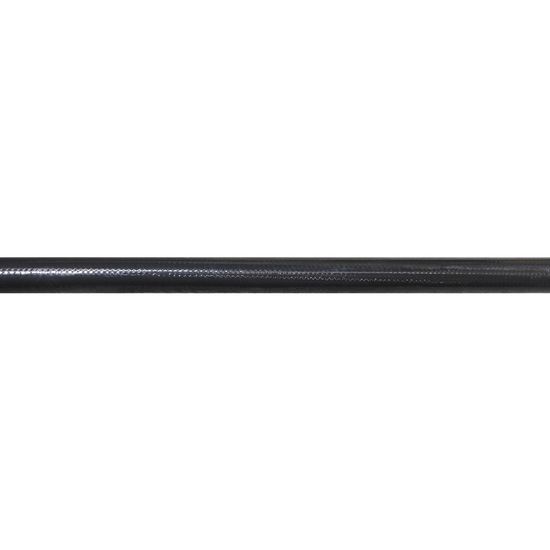

Thermoplastic Hose 1/2 Cplt5000

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH15408

  Manufacturer

  CharacteristicsPRICE/METER

  - SAE 100R18 / ISO3949-R18
  - reinforcement with 2 braided steel wire inserts
  - inner thermoplastic polyester elastomer
  - outer black polyester
  - applications: for general use in hydraulic applications requiring high mechanical durability and pressure resistance in cold conditions, construction machinery, lifting and handling equipment, machine tools
  - operating temperature -55...+100 °C / air and water-based fluid max. +70 °C
  - nominal size -08
  - hose DN 12
  - inner Ø 1/2"
  - inner Ø 13.0 mm
  - outer Ø 21.3 mm
  - working pressure 350 bar
  - burst pressure 1400 bar
  - bend radius 80 mm
  - weight 390 g/m
