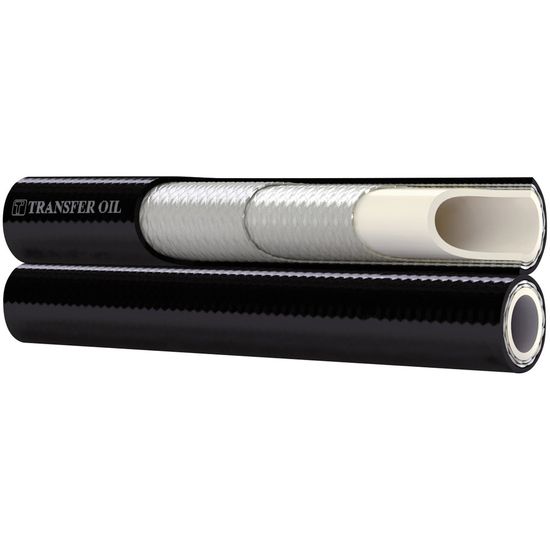

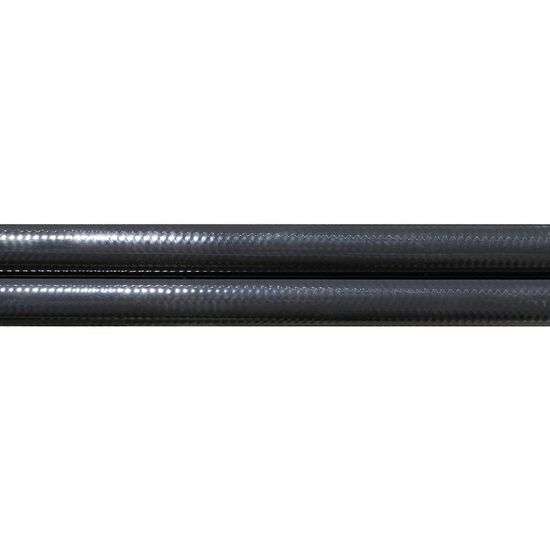

Thermoplastic Double Hose 3/8 R18 Cplt3000

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH13506

  Manufacturer

  CharacteristicsPRICE/METER

  - SAE 100R18 (meets or exceeds) / ISO3949-R18
  - 2 layers of synthetic fiber reinforcement
  - internal thermoplastic polyester elastomer
  - external black polyester
  - applications: forklift usage, all industrial and agricultural applications exposed to low temperatures or cyclic and rapid temperature variations
  - working temperature -55...+100 °C / air and water-based fluid max. +70 °C
  - nominal size -06
  - hose DN 10
  - internal Ø 3/8"
  - internal Ø 9.7 mm
  - outer Ø 16.6 mm
  - working pressure 210 bar
  - burst pressure 840 bar
  - bend radius 45 mm
  - weight 330 g/m
