Hydraulic Hose 2Sn-1/4 400Bar En 853

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID2SN04T

  ManufacturerVITILLO

  Characteristics

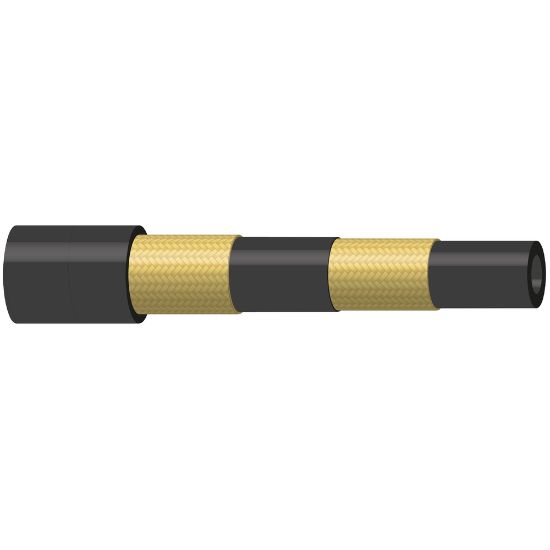

  - Vitillo Tekno/2SN hydraulic hose
  - EN 853 2 SN - SAE 100 R2AT
  - reinforcement 2 braided steel wire inserts
  - internally oil-resistant synthetic rubber
  - externally weather and oil-resistant synthetic rubber
  - operating temperature -40...+100 °C
  - nominal size -04
  - hose DN 6
  - inner Ø 1/4"
  - inner Ø 6.4 mm
  - outer Ø 14.6 mm
  - working pressure 400 bar
  - burst pressure 1600 bar
  - bending radius 100 mm
  - weight 0.34 kg/m

  Approved fluids:
  - mineral oils
  - vegetable and rapeseed oils
  - glycol and polyglycol-based oils
  - synthetic ester-based oils
  - oil-in-water emulsions
  - water
