Hydraulic Hose 1Sn-1.1/4 63Bar En853 Sel

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID1SN20

  Manufacturer

  CharacteristicsPRICE/METER

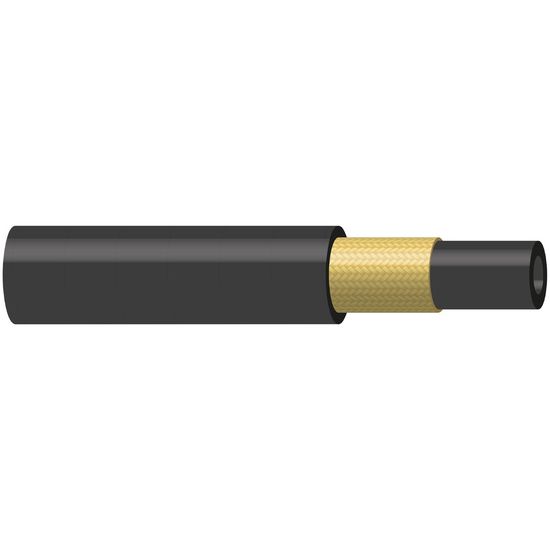

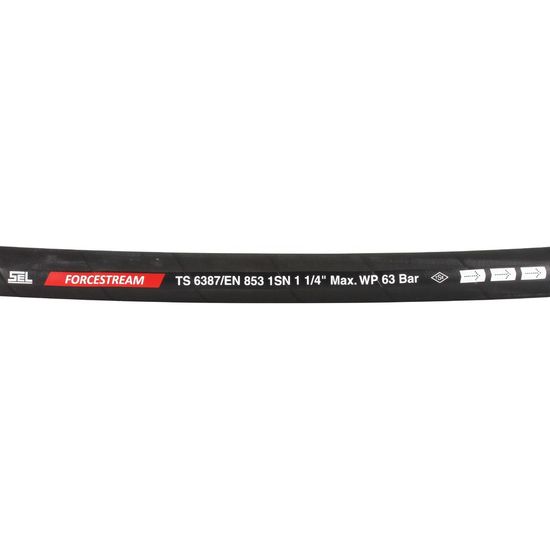

  - SEL Forcestream® 1AT
  - EN 853 1SN / ISO 1436-1SN / SAE 100 R1AT
  - reinforcement 1 braided steel wire insert
  - internally oil-resistant synthetic rubber
  - externally weather and oil resistant synthetic rubber
  - operating temperature -40...+100 °C
  - nominal size -20
  - hose DN 32
  - inner Ø 1 1/4 "
  - inner Ø 31.8 mm
  - outer Ø 43.5 mm
  - working pressure 63 bar
  - burst pressure 280 bar
  - bend radius 420 mm
  - weight 1.20 kg/m
