Hydraulic Hose 1Sn-1.1/2 50Bar En853 Sel

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID1SN24

  Manufacturer

  CharacteristicsPRICE/METER

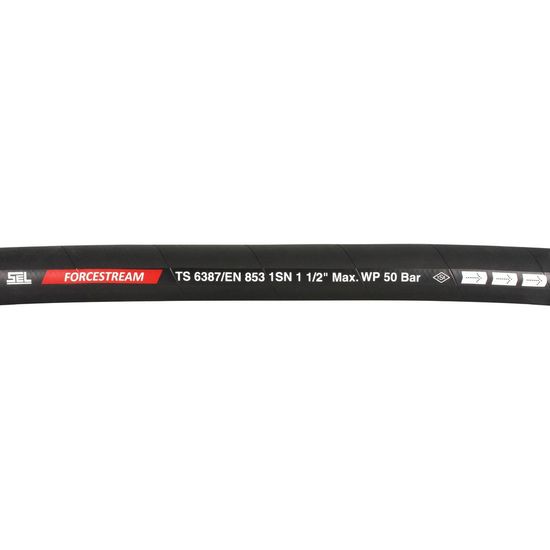

  - SEL Forcestream® 1AT
  - EN 853 1SN / ISO 1436-1SN / SAE 100 R1AT

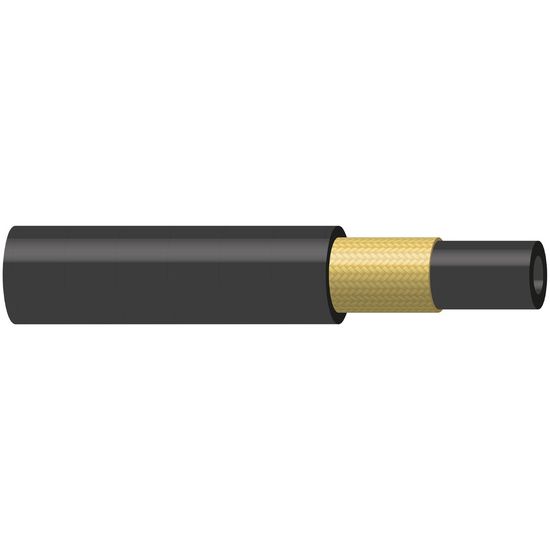

  - reinforcement 1 braided steel wire insert
  - internally oil-resistant synthetic rubber
  - externally weather and oil resistant synthetic rubber
  - operating temperature -40...+100 °C
  - nominal size -24
  - hose DN 38
  - inner Ø 1 1/2"
  - inner Ø 38.1 mm
  - outer Ø 50.0 mm
  - working pressure 50 bar
  - burst pressure 260 bar
  - bend radius 500 mm
  - weight 1.40 kg/m
