Hydraulic Cylinder 40X20X100

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS4020100K

  Manufacturer

  Characteristics

  Installation dimensions 250 mm
  Operating pressure max 210 bar
  Double-acting (Can be made into single-acting)

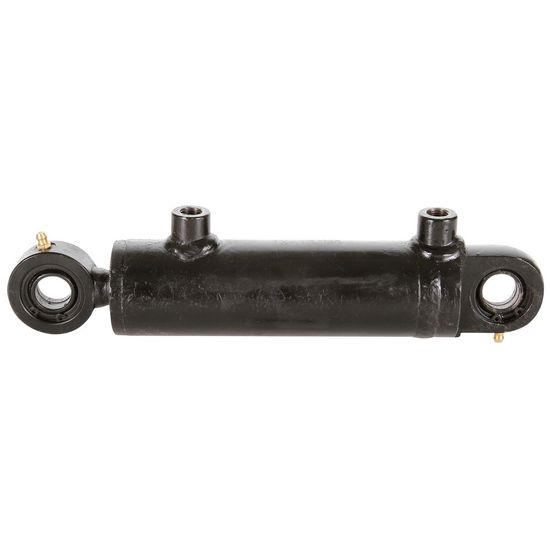

  Double-Acting Hydraulic Cylinder 40x20x100.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with nipple HSH14.

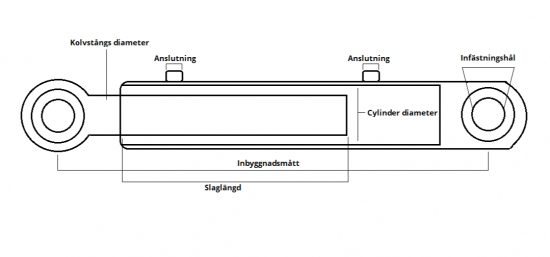

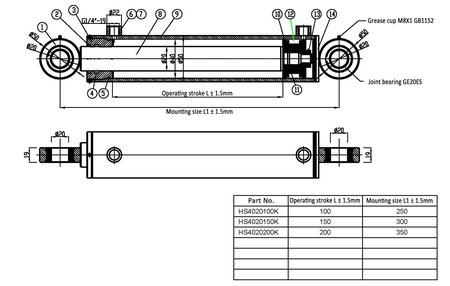

  Technical specification:
  - piston 40 mm
  - rod 20 mm
  - rod end 20 mm
  - thread 1/4"
  - stroke length 100
  - installation dimension 250
  - maximum operating pressure 210 bar
