Hydraulic Cylinder 40x25x250 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS4025250K

  Manufacturer

  CharacteristicsInstallation dimensions 400 mm
  Operating pressure max 210 bar
  Double-acting (Can be made into single-acting)

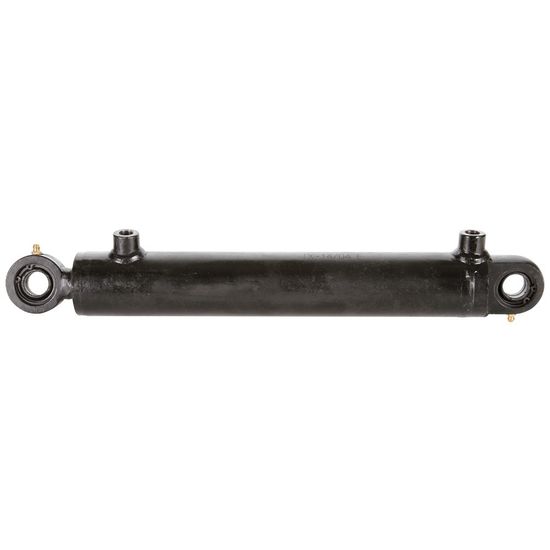

  Double-Acting Hydraulic Cylinder  40x25x250.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with nipple HSH14.

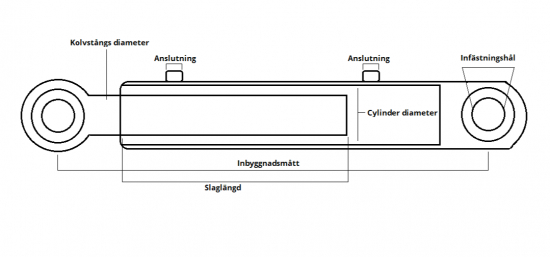

  Technical specification:
  - piston 40
  - rod 25
  - rod end 20 mm
  - thread 1/4"
  - stroke length 250 mm
  - installation dimension 400 mm
  - maximum operating pressure 210 bar
