Nord-Lock Washer M6 Wide 20pcs Delta N-L

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDNL06SP

  Manufacturer

  CharacteristicsThread: M6 x 1.0
  Inner diameter Ø (mm): 6.5
  Outer diameter Ø (mm): 13.5
  Thickness (mm): 2.5
  Material: Steel
  Coating: Delta Protekt
  DIN: DIN 65151
  Packaging length (cm): 9
  Packaging width (cm): 1.5
  Packaging height (cm): 16
  Gross weight (kg): 0.057000
  EAN: 7330948017925

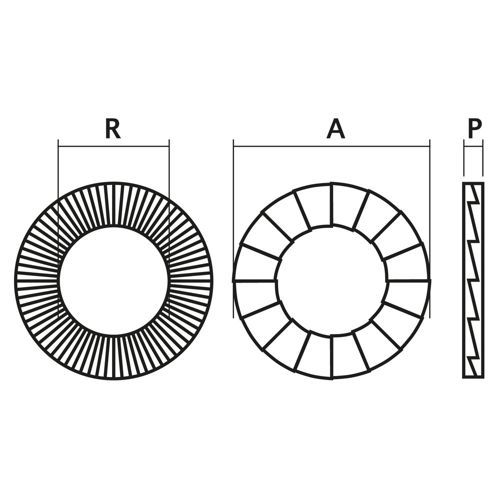

  - size M6
  - inner diameter (R) Ø 6.5 mm
  - outer diameter (A) Ø 13.5 mm
  - thickness (P) 2.5 mm
  - EN 1.7182 or equivalent steel, zinc flake coating, Delta Protekt®, through-hardened

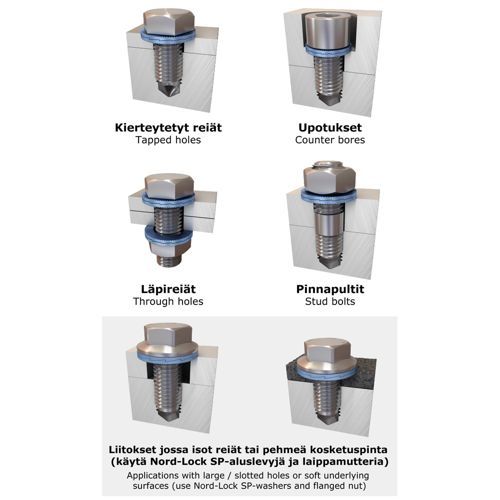

  - suitable for: threaded holes, counterbores, through holes, clevis pins
  - applications: industrial, transportation industry, mining operations, construction, shipbuilding, forestry and agriculture, heavy vehicles, motorsport, etc.
  - operating temperature -40°C to +200°C
  - 20 pairs / pack

  More information:
  - manufactured in Sweden
  - wedge-locking system
  - Nord-Lock lock washers consist of two parts - for ease of initial assembly, the parts have been lightly glued together
  - each pair can be identified through laser marking
  - the lock washers securely fasten bolted joints subjected to vibrations and dynamic loads
  - according to vibration test DIN65151 a reliable bolt securing system
  - retains high clamping force and ensures joint functionality
  - fast and easy to assemble and disassemble with standard tools
  - the disassembly torque is almost the same as the tightening torque
  - can be installed dry, lubrication improves tightening results further (lubricant eg. WKR21 or MA3120597)
  - can be used with fasteners up to class 12.9
  - reusable
  - can withstand and distribute large loads
  - high corrosion resistance (at least 600 h in salt spray test)
  - reliable fastening, even for joints with a short clamping length
  - easy-to-check locking mechanism
  - complies with ISO 9001 and ISO 14001 quality and environmental standards
  - TÜV tested and approved
  - SP models for base materials and fastenings with large holes
  - elegant solution - modern technology
  - blister packs include assembly instructions in 17 different languages
