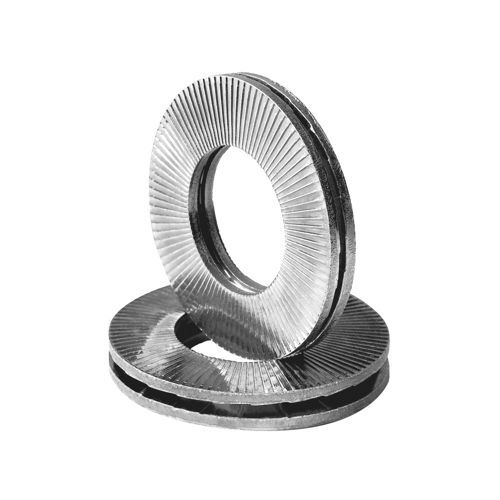

Nord-Lock Washer M24 2pcs Delta N-L

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDNL24

  Manufacturer

  CharacteristicsThread: M24 x 3.0
  Inner diameter Ø (mm): 25.3
  Outer diameter Ø (mm): 39
  Thickness (mm): 3.4
  Material: Steel
  Coating: Delta Protekt
  DIN: DIN 65151
  Packaging length (cm): 9
  Packaging width (cm): 1.5
  Packaging height (cm): 16
  Gross weight (kg): 0.052000
  EAN: 7330948018182

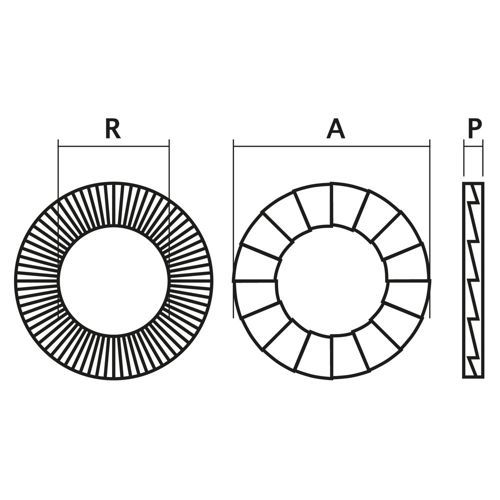

  - size M24
  - inner diameter (R) Ø 25.3 mm
  - outer diameter (A) Ø 39.0 mm
  - thickness (P) 3.4 mm
  - EN 1.7182 or equivalent steel, zinc flake coating, Delta Protekt®, hardened

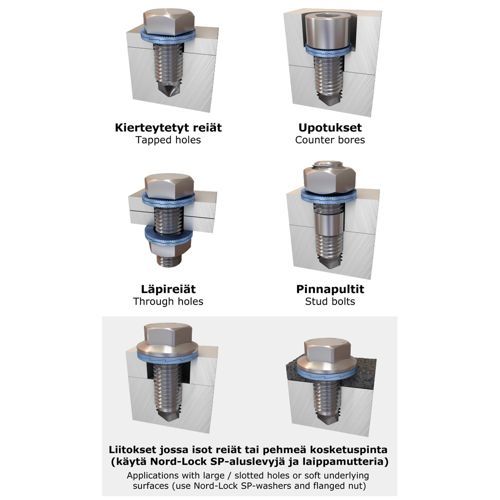

  - suitable for: threaded holes, counterbores, through holes, pin bolts
  - applications: industry, transportation sector, mining, construction, shipbuilding, forestry and agriculture, heavy vehicles, motorsport, etc.
  - operating temperature -40°C to +200°C
  - 2 pairs / packaging

  More information:
  - manufactured in Sweden
  - wedge-locking system
  - Nord-Lock locking pairs consist of two parts - for ease of the first assembly, the parts are lightly glued together
  - each pair can be identified through laser marking
  - the locking pairs securely lock screw joints subject to vibrations and dynamic loads
  - according to vibration test DIN 65151 a secure screw securing system
  - retains high clamping force and ensures that the joint functions
  - quick and easy to assemble and disassemble with standard tools
  - the torque used during disassembly is almost the same as the tightening torque
  - can be installed dry, lubrication improves the tightening result further (lubricant e.g. WKR21 or MA3120597)
  - can be used together with fasteners up to grade 12.9
  - reusable
  - can absorb and distribute large loads
  - high resistance to corrosion (at least 600 h in salt spray test)
  - reliable locking, even for joints with a short clamping length
  - easily controllable locking mechanism
  - complies with ISO 9001 and ISO 14001 quality and environmental standards
  - TÜV tested and approved
  - SP models for base materials and for fastenings with large holes
  - elegant solution - modern technology
  - blister packages include assembly instructions in 17 different languages
