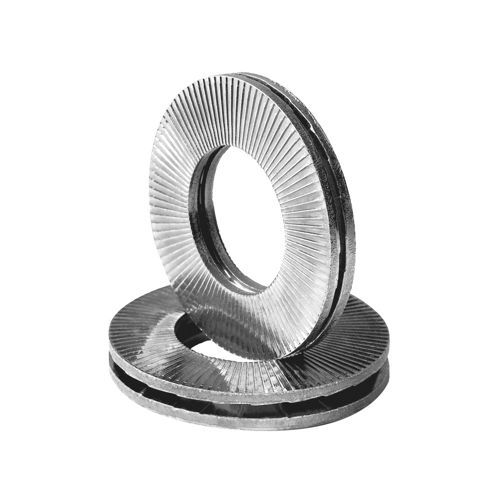

Nord-Lock Washer M10 Wide 10pcs Delta

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDNL10SP

  Manufacturer

  CharacteristicsThread: M10 x 1.5
  Inner diameter Ø (mm): 10.7
  Outer diameter Ø (mm): 21
  Thickness (mm): 2.5
  Material: Steel
  Coating: Delta Protekt
  DIN: DIN 65151
  Packaging length (cm): 1.5
  Packaging width (cm): 9
  Packaging height (cm): 16
  Gross weight (kg): 0.064000
  EAN: 7330948018007

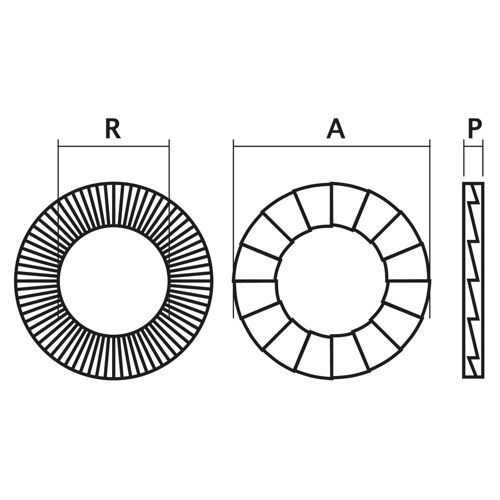

  - size M10
  - inner diameter (R) Ø 10.7 mm
  - outer diameter (A) Ø 21.0 mm
  - thickness (P) 2.5 mm
  - EN 1.7182 or equivalent steel, zinc flake coating, Delta Protekt®, hardened

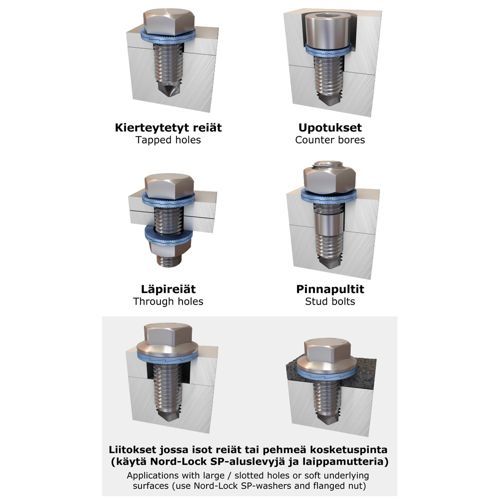

  - suitable for: threaded holes, counterbores, through holes, pin bolts
  - areas of use: industry, transport sector, mining, construction, shipbuilding, forestry and agriculture, heavy vehicles, motorsport, etc.
  - operating temperature -40°C to +200°C
  - 10 pairs / pack

  More information:
  - manufactured in Sweden
  - wedge locking system
  - Nord-Lock lock washer pairs consist of two parts - the parts have been lightly glued together to facilitate the initial assembly
  - each pair can be identified via laser marking
  - the lock washers securely lock screw connections subjected to vibrations and dynamic loads
  - according to vibration test DIN65151, a secure screw securing system
  - retains high clamping force and thus ensures the connection functions
  - quick and easy to assemble and disassemble with standard tools
  - the torque used during disassembly is almost the same as the tightening torque
  - can be assembled dry, lubrication further improves the tightening result (lubricants such as WKR21 or MA3120597)
  - can be used together with fasteners up to class 12.9
  - reusable
  - can absorb and distribute large loads
  - high resistance to corrosion (at least 600 h in salt spray test)
  - reliable locking, even for connections with a short clamping length
  - easily controllable locking mechanism
  - complies with ISO 9001 and ISO 14001 quality and environmental standards
  - TÜV tested and approved
  - SP models for base materials and fastenings with large holes
  - elegant solution - modern technology
  - blister packages include assembly instructions in 17 different languages
