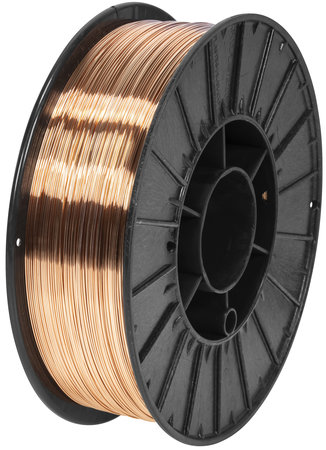

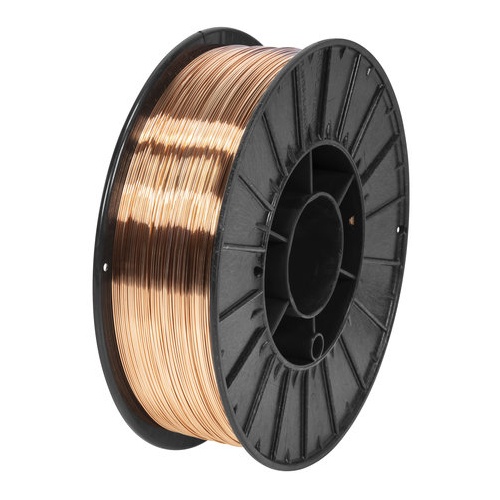

MIG Welding Wire SG2 0.8mm 5kg MAGMAWELD

• Info
• Stock status

  Product IDHLM0508

  Manufacturer

  Characteristics

  - Magmaweld MG 2 is a non-alloyed MIG/MAG welding wire for cast and structural steel
  - thin and homogeneous copper coating for increased electrical conductivity and rust protection
  - for all-position welding with CO2 or mixed gas blends
  - applications: steel structures, shipbuilding industry, machinery, tanks, and automotive industry
  - chemical composition C 0.07, Si 0.8, Mn 1.45
  - size Ø 0.8 mm
  - welding current 50-180 A
  - 5 kg/spool

  Mechanical values (shielding gas C1 / M21):
  - yield strength 460 N/mm² / 430 N/mm²
  - tensile strength 530 N/mm² / 530 N/mm²
  - elongation A5 29 % / 28 %
  - impact strength -30 °C 50 J / -40 °C 55 J

  Standards:
  - AWS/ASME SFA - 5.18 ER70S-6
  - EN ISO 14341 - A G 42 3 C1 G 3Si1
  - EN ISO 14341 - A G 42 4 M21 G 3Si1
  - TS EN ISO 14341 - A G 42 4 M21 G 3Si1
  - TS EN ISO 14341 - A G 42 3 C1 G 3Si1
  - DIN 8559 SG 2 CY 42 43
  - DIN M. No. 1.5125
