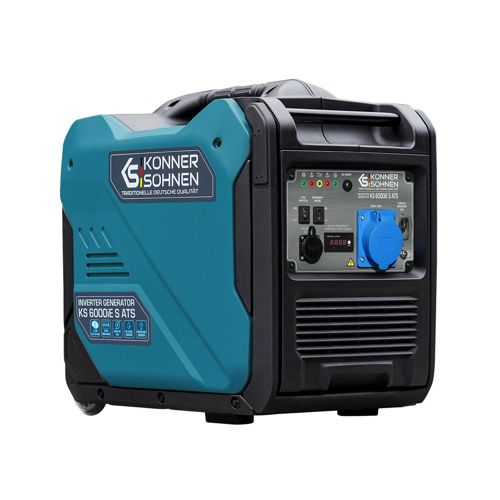

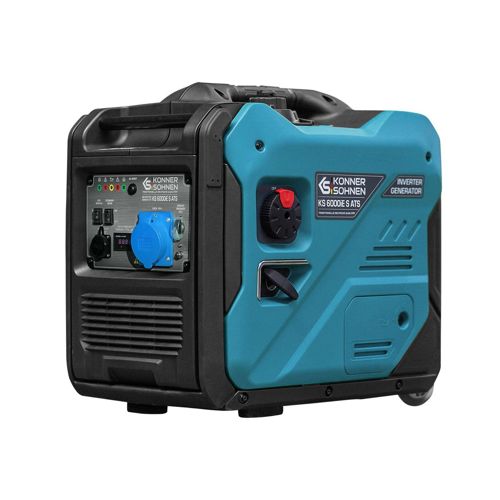

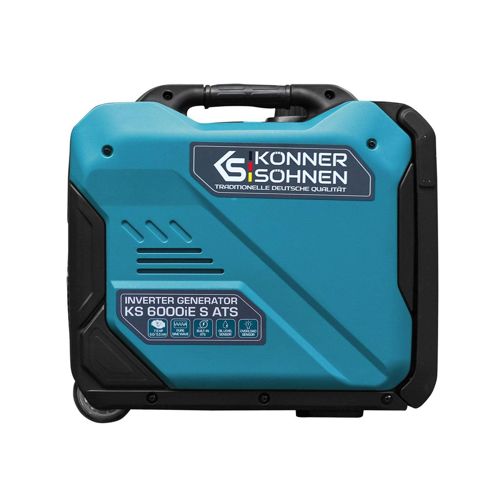

Generator Inverter KS 6000iE S ATS

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS6000iESATS

  ManufacturerKönner & Söhnen

  Characteristics

  The inverter generator KS 6000iES ATS has a built-in ATS unit and can be operated both manually and automatically.

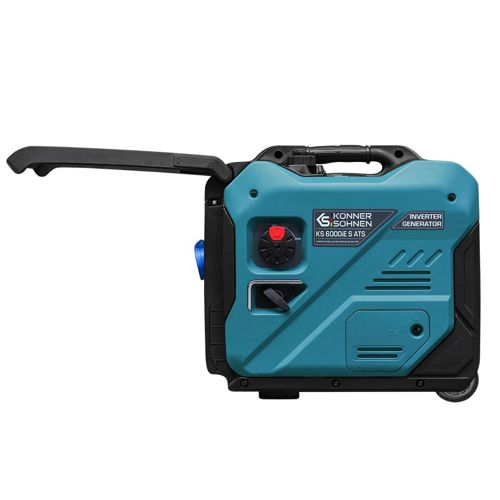

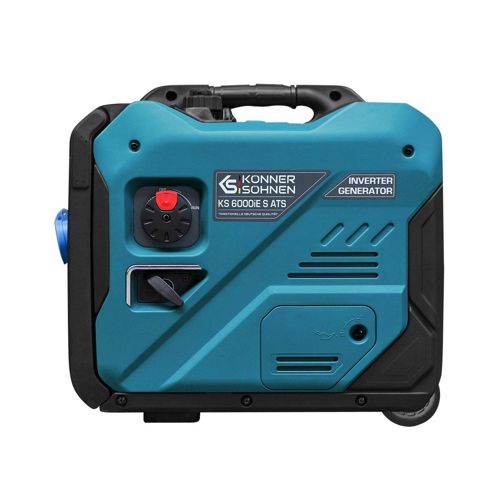

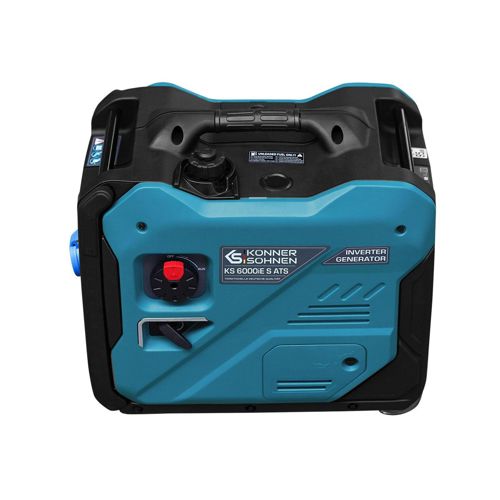

  The OFF-RUN switch on the right side of the generator combines the fuel tap, internal power supply at 12V, and the ignition switch. When the generator is not in use, it should be set to OFF to prevent discharge of the built-in lithium battery in the generator. The generator comes with a disconnected battery that must be connected during the first commissioning, under the left side cover. The battery is charged by the internal charging module as soon as the generator is running or when 230V voltage is applied to MAINS INPUT (regardless of the switch position).

  MAIN INPUT 230V connection is monitored as soon as the switch is set to RUN and the ATS SWITCH is set to ON. If the 230V voltage at MAINS INPUT is interrupted, the ATS control starts the generator and switches its outlet to inverter mode.

  KS 6000iES ATS has a CEE 230V 32A outlet that is connected differently depending on the generator version.
  The CEE 230V 32A outlet is active both when running from MAINS INPUT and when running from the generator.

  When running from MAINS INPUT, the CEE 230V 32A outlet provides the same system (IT, TN, TT) as the MAINS INPUT. The generator must be earthed with a copper wire of 6-10 mm² (depending on local regulations) for TT and TN systems by connecting its ground screw to the same ground bar where the MAINS 230V power source is connected. The PE contact on the outlet is connected to the ground screw.

  After the power supply has been switched to the generator, the CEE 230V 32A outlet provides only IT grid without a grounded neutral wire. This requires compliance with regulations and protective measures for the IT system.

  With this version of the generator, you can protect power consumers that can operate in both TN and IT grids. Complete household power supply in automatic mode is not possible!

  If you want to provide individual power consumers or their groups (homes, offices, etc.) with a grounded neutral wire in the TN system in automatic mode, we recommend using Version 2 of the generator KS 6000iE S ATS Version 2.

  Disclaimer:
  This instruction should be considered a recommendation, it is illustrative and must be adapted to the exact circumstances and conditions on-site during installation. The installation should be done by an authorized electrician and in accordance with all local standards and regulations. We do not take responsibility for incorrect installations and their consequences.

  PURE SINUSOIDAL WAVE
  Built-in inverter module with microprocessor control monitors the generator's functions and provides stable 230V 50Hz sinusoidal wave, suitable even for sensitive power consumers.

  ROBUST ENGINE
  The reliable K&S engine stands out for increased durability, reliable and stable operation, and complies with all European quality standards, including the latest EURO V emission standard.

  ECO MODE
  The ECO mode reduces fuel consumption at low loads by lowering revs by up to 50%.

  ATS UNIT
  The generator is equipped with an internal ATS unit. The ATS unit monitors the voltage from the main power source, starts the generator in case of power outage, and switches the load to be supplied by the generator. The ATS unit switches back to the main power source when it returns and stops the generator.

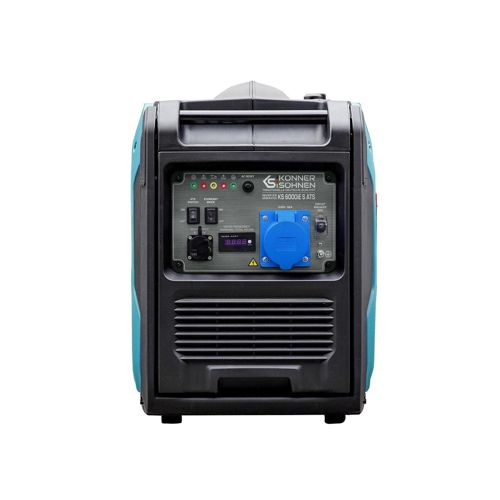

  ERGONOMIC CONTROL PANEL
  The ergonomic control unit is equipped with an LED display, an ECO mode switch, a RESET button to reset the electronic overload protection triggered by the inverter module, and restore the power supply. The microprocessor control monitors the key parameters. The oil shortage protection shuts down the generator in case of low oil level.

  REDUCED NOISE LEVEL
  The noise-insulating housing provides a noise level (70 dB Lpa 7 m), easy to use and convenient to transport. It is equipped with a transport kit for easy mobility.

  ALTERNATOR WITH 100% COPPER WINDING
  The high-quality brushless generator with permanent magnets and 100% copper winding can handle high loads and ensure a durable and reliable operation of the generator.

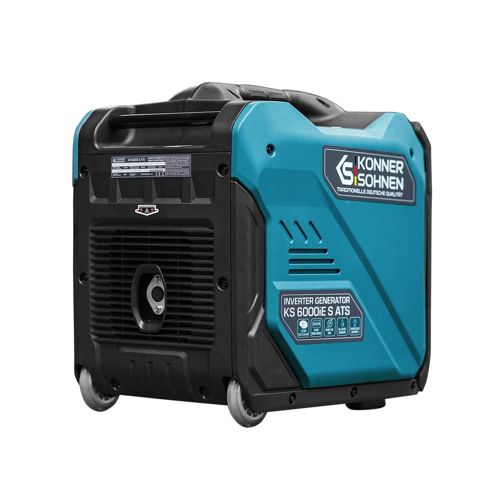

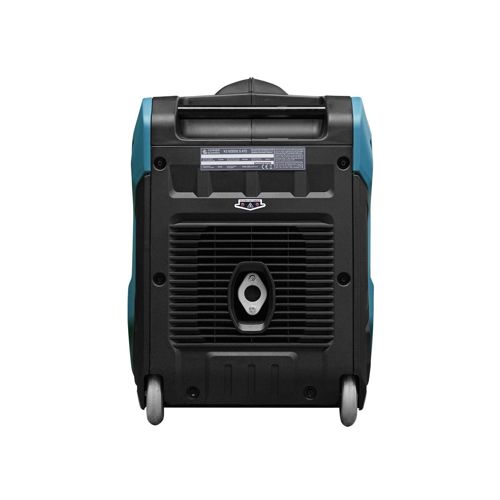

  TRANSPORT KIT

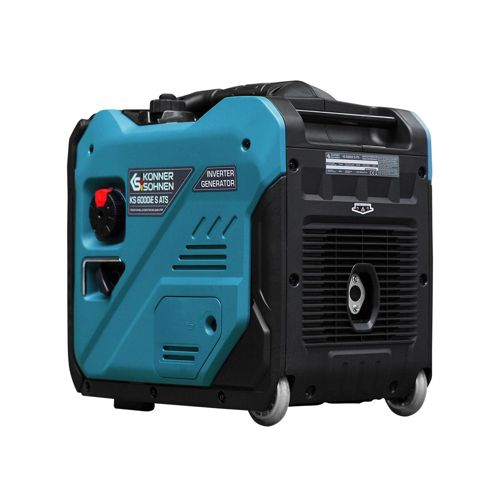

  Inverter generators from Könner & Söhnen are equipped with a transport kit for convenient handling. Two wheels and a handle facilitate transportation for mobile applications of the generator.

  Technical specifications:
  Possible use: Only for individual electrical consumers
  Voltage: 230
  Max power, kW: 5.5
  Rated power, kW: 5.0
  Frequency, Hz: 50
  Current (max), A: 23.9
  Outlets: 1 x CEE 230 V 32 A
  Starter: Manual/electric/automatic
  Fuel tank volume, liters: 11
  LED display: Voltage, frequency, operating hours
  Noise level Lpa (7m)/Lwa, dB: 70/95
  Engine model: KS 240i
  Cylinder volume, cm3: 223
  Engine type: Gasoline-driven single-cylinder, four-stroke air-cooled
  Engine power, hp: 7.5
  Parallel connection possibility: -
  ATS outlet: Built-in ATS
  Oil distribution volume, liters: 0.7
  Brake current, A·h: 1.6
  Generator winding: Copper
  Net dimensions (WxDxH), mm: 640x425x600
  Net weight, kg: 40
  Gross weight, kg: 43.4
  EAN code: 4260405365807
