Generator Inverter KS 4000iE S ATS

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS4000iESATS

  ManufacturerKönner & Söhnen

  Characteristics

  The inverter generator KS 4000iES ATS has a built-in ATS unit and can be operated both manually and automatically.

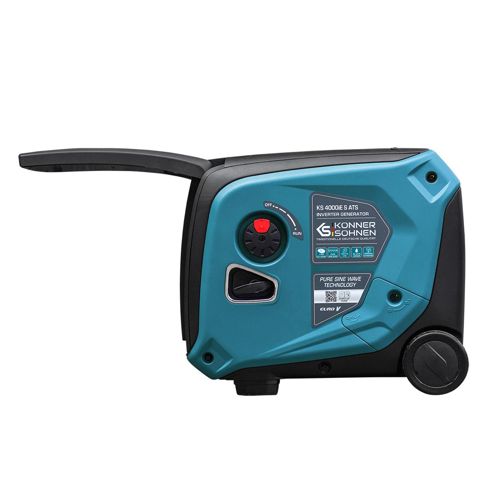

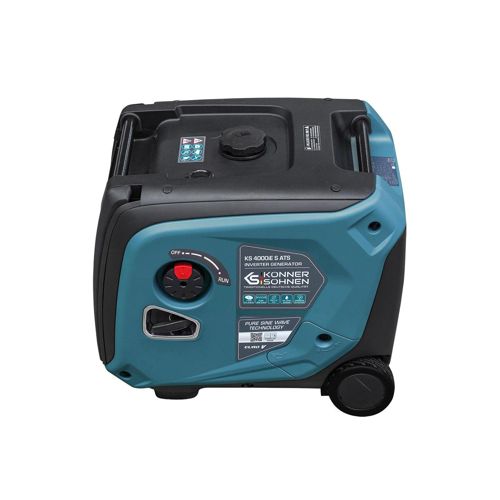

  The OFF-RUN switch on the right side of the generator combines the fuel tank switch, the internal 12V power switch, and the ignition switch. When the generator is not in use, it should be kept in the OFF position to prevent discharge of the built-in lithium battery in the generator. The generator comes with a disconnected battery that must be connected during the first commissioning, located under the left side cover. The battery is charged by the internal charging module as soon as the generator is running or when 230V voltage is connected to MAINS INPUT (regardless of the switch position).

  MAIN INPUT 230V connection is monitored as soon as the switch is set to RUN and the ATS SWITCH is set to ON. If the 230V voltage at MAINS INPUT fails, the ATS control starts the generator and switches its 230V output to inverter mode.

  KS 4000iES ATS has 2 x 230V outlets that are differently connected depending on the generator version.
  Both 230V outlets are active both when running from MAINS INPUT and when running from the generator.

  Both 230V outlets provide the same system (IT, TN, TT) as MAINS INPUT when running from MAIN INPUT. The generator must be earthed in TT and TN systems with a copper conductor of 6-10 mm² (depending on local regulations) by connecting its grounding screw to the same grounding busbar where the MAINS 230V power source is grounded.

  The two outlets after switching the power supply to the generator provide only IT grid without the grounded neutral wire. Therefore, regulations and protective measures for the IT system must be observed.

  With this version of the generator, you can secure power consumers that can function in both TN and IT grids. Complete home electrification in automatic mode is not possible!

  If you want to provide individual power consumers or their groups (houses, offices, etc.) in the TN system with the grounded neutral wire in automatic mode, we recommend using version 2 of the generator KS 4000iE S ATS Version 2

  Disclaimer:
  This instruction should be considered only as a recommendation, it is illustrative and must be adapted to the exact circumstances and conditions on-site during installation. The installation should be carried out by a qualified electrician and in accordance with all local standards and regulations. We do not take responsibility for incorrect installations and their consequences.

  PURE SINUSOIDAL WAVE
  Built-in inverter module with microprocessor control monitors the generator's functions and generates stable 230V 50Hz sinusoidal voltage, suitable even for sensitive electrical consumers.

  ROBUST ENGINE
  The reliable K&S company's engine stands out for increased resistance to wear, reliable and stable operation, and complies with all European quality standards, including the latest EURO V emission standard.

  ECO MODE
  The ECO mode reduces fuel consumption at light loads by lowering revs by up to 50%.

  ATS UNIT
  The generator is equipped with an internal ATS unit. The ATS unit monitors the voltage from the main power source, starts the generator in case of power outage, and switches the load to be supplied by the generator. The ATS unit switches back to the main power source when it returns and shuts off the generator.

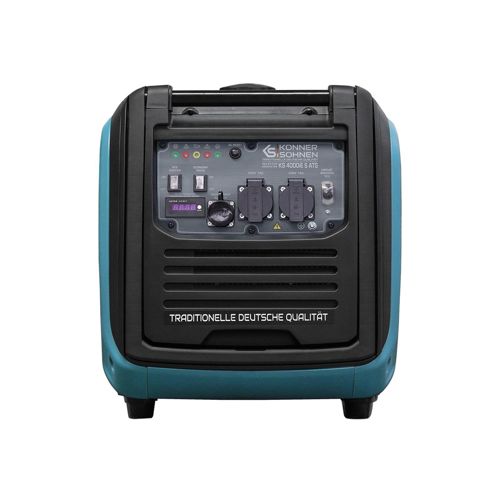

  ERGONOMIC CONTROL PANEL
  The ergonomic control panel is equipped with an LED display, an ECO mode button, a RESET button to reset the electronic overload protection triggered in the inverter module, and restore the power supply. Microprocessor control monitors the key parameters. The oil shortage protection shuts down the generator in case of low oil level.

  REDUCED NOISE LEVEL
  The noise-insulating shell provides a noise level (66 dB Lpa 7 m), easy to use and convenient to transport. It is equipped with a transport kit for easy mobility.

  GENERATOR WITH 100% COPPER WINDING
  The high-quality brushless generator with permanent magnets and 100% copper winding can handle high loads, ensuring a durable and reliable operation of the generator.

  TRANSPORT KIT
  Inverter generators from Könner & Söhnen come with a transport kit for convenient handling. Two wheels and a handle facilitate transportation for mobile applications of the generator.

  Technical specifications:
  Possible use: Only for individual electrical consumers
  Voltage: 230
  Max power, kW: 4.0
  Rated power, kW: 3.5
  Frequency, Hz: 50
  Current (max), A: 17.4
  Outlets: 2 x Schuko 230 V
  Starter: Manual/electric/automatic
  Fuel tank volume, liters: 12
  LED display: Voltage, frequency, operating hours
  Noise level Lpa (7m)/Lwa, dB: 66/91
  Engine model: KS 240i
  Cylinder volume, cm3: 223
  Engine type: Gasoline-driven single-cylinder, four-stroke air-cooled
  Engine power, hp: 7.5
  Parallel connection possibility: -
  ATS outlet: Built-in ATS
  Oil distribution volume, liters: 0.6
  Brake current, A·h: 1.6
  Net dimensions (WxDxH), mm: 620x440x510
  Gross dimensions (WxDxH), mm: 630x475x570
  Net weight, kg: 40
  Gross weight, kg: 43.4
  EAN code: 4260405365784
