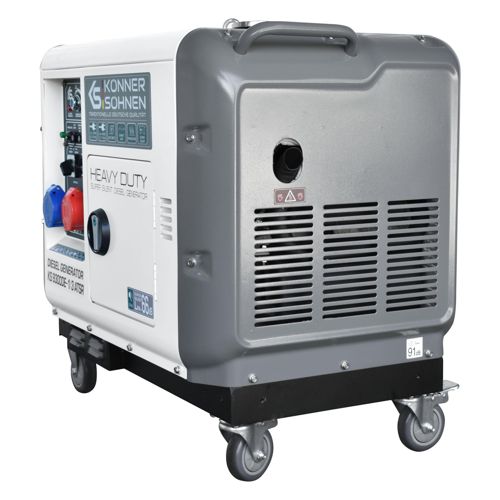

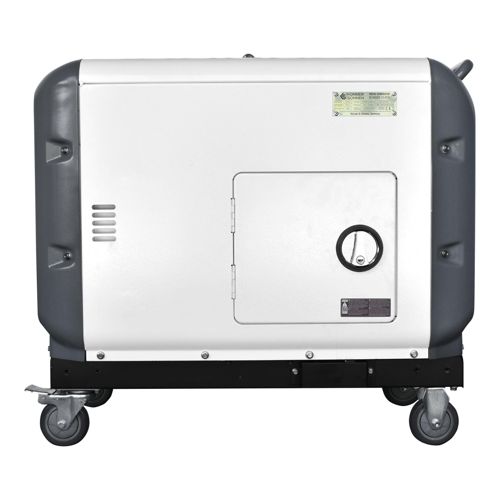

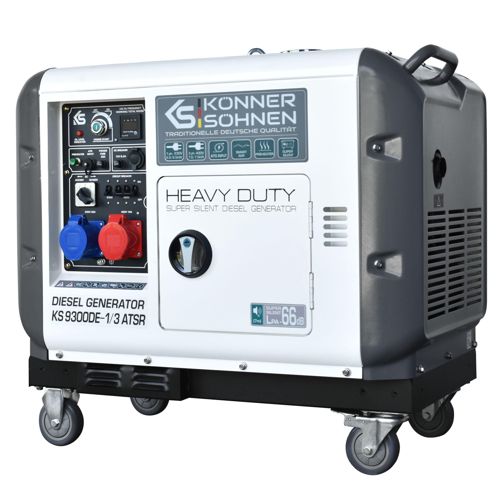

Diesel Generator Könner & Söhnen KS 9300DE-1/3 ATSR (EURO V)

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS9300DE-ATSR

  ManufacturerKönner & Söhnen

  Characteristics

  MARKET ENGINES
  In the same way as for petrol generators, engines for diesel-driven generators are manufactured under license from DIMAX Int. and equipped with their own brand and logo. For all models, the engine's power reserve towards the generator enables the generation of the specified voltage and maintains stability across the entire voltage range. All engines are tested for long-term operation and then disassembled for fault inspection. Each engine and each generator has an individual serial number. This allows us to monitor production and service quality. The engines comply with all global and European quality, economic, and environmental standards (especially for emissions and noise levels).

  VTS SYSTEM
  VTS SYSTEM Universal generators 2-in-1 feature a unique VTS phase switching system (Voltage Transfer Switch) that allows the use of a generator in both single-phase mode (230 V) and three-phase mode (400 V) with almost no power loss. Each mode has its own circuit breakers. There is no need to buy two separate generators for single-phase and three-phase consumers.

  ATS CONNECTION
  The ATS unit (Automatic Transfer Switch) starts the generator automatically and transfers the load when the main power is disconnected, then automatically shuts off the generator when the main power is restored.

  EXTENDED ENGINE LIFESPAN
  HEAVY DUTY diesel-driven generators are not only power sources but are also suitable for continuous operation. The engine lifespan is over 3000 operating hours, confirmed through multiple hours and incremental tests and a warranty. As powerful as the engines are, they thrive with proper operation and regular maintenance.

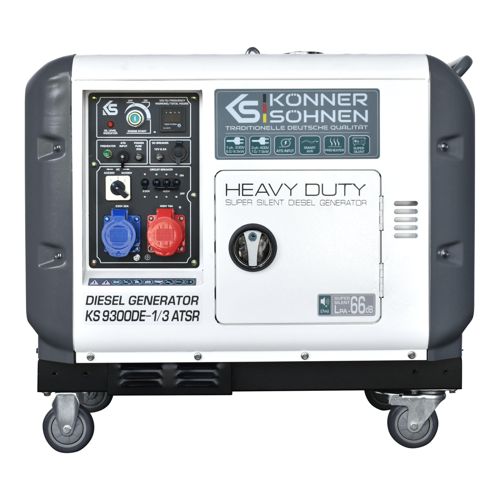

  USER-FRIENDLY ERGONOMIC CONTROL PANEL
  The user-friendly ergonomic control panel makes it easy to operate the entire unit and requires no additional skills. A modern intelligent LED display always shows operating hours, frequency, and voltage values. The information displayed helps assess the unit's load correctly and perform generator maintenance on time, extending the unit's lifespan.

  PREHEATING FUNCTION (PREHEATER)
  All HEAVY DUTY diesel generators are equipped with a preheating function (PREHEATER) that makes it easy to start the generator in winter.

  VANDAL-RESISTANT SOUNDPROOF HOUSING
  The generator is equipped with a vandal-resistant housing with improved heat dissipation inside, extending the unit's lifespan.

  TRANSPORT KIT
  The generator housing is equipped with a transport kit that includes 4 wheels and 2 handles for easy handling.

  Technical Specification:
  Voltage: 230/400
  Max/Rated power (230V), kW: 6.5/6.0
  Max/Rated power (400V), kW: 7.5/7.0
  Frequency, Hz: 50
  Current (max.) 230/400 V, A: 28.26/13.54
  Outlets: 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
  Average operating time (50% power), h: 8.3
  LED display: Voltage, frequency, operating time
  Noise level Lpa (7m)/Lwa, dB: 66/91
  DC power output, V/A: 12/8.3
  Engine model: KS 520HD-V
  Engine type: Diesel, single-cylinder, four-stroke engine with air cooling
  Engine power, hp/kW: 18.0/13.24
  Preheater: +
  Fuel tank volume, l: 15
  Cylinder chamber volume, l: 1.65
  Engine cylinder volume, cm3: 498
  Power output control: Intelligent voltage stabilization system AVR
  Engine start: Electric
  Battery, A·h: 30
  Output for ATS (automatic transfer): +
  Net dimensions (LxWxH), mm: 920x580x860
  Gross dimensions (LxWxH), mm: 940x600x880
  Net weight, kg: 168
  Gross weight, kg: 180
  Protection class: IP23M
  EAN code: 4260405365210
