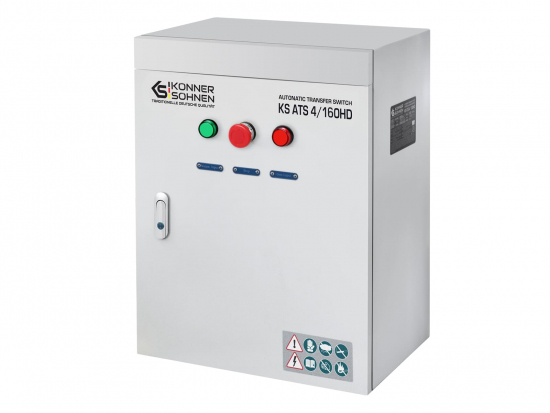

ATS Box KS ATS 4/160HD

• Info
• Stock status

  Product IDKSATS4_160HD

  ManufacturerKönner & Söhnen

  Characteristics

  KS ATS 4/160HD ATS unit (Automatic Transfer Switch) from the German brand "Könner & Söhnen" automatically starts the generator and transfers the load to it when the main power supply is disconnected, and automatically stops the generator when the central power supply is restored. It is compatible with Könner & Söhnen diesel generators. The ATS unit can be used in both automatic and manual mode.

  Features:

  • Universal design allowing connection of the ATS unit to single and three-phase networks
  • Automatic/manual operation
  • Motor-driven switch
  • Terminal block for control cables
  • LED indicators for voltage
  • Protective metal housing


  Technical specification:


  • Maximum power consumption: W18
  • Power (230 V): 36.8 kW
  • Current (max, 230 V): 160 A
  • Power (400 V): 88.5 kW
  • Current (max, 400 V): 160 A
  • Operating environment: from -20 to +45 °C; humidity: <50 %
  • Storage environment: from -30 °C to +70 °C; humidity: <50 %
  • Isolation class: AC 1.0 kV/1 min, 1 mA
  • Voltage: 230/400 V
  • Frequency: 50 Hz
  • IP protection class: IP44
  • Net dimensions (LxWxH): 500x300x600 mm
  • Gross dimensions (LxWxH): 515x315x662 mm
