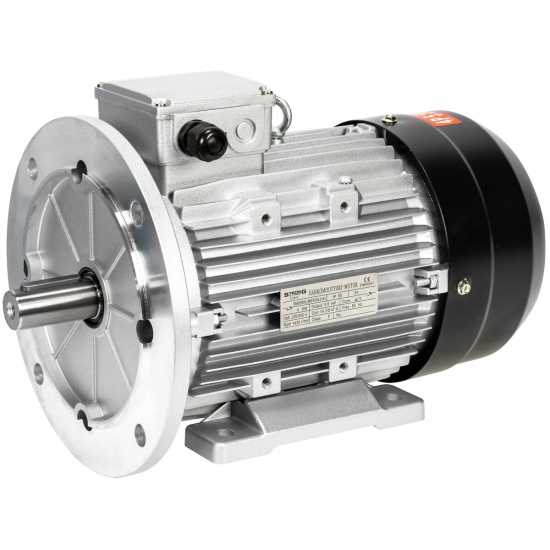

Electric motor 230/400V 4Kw 1430Rpm B35

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSM0040L

  Manufacturer

  Characteristics

  - power 4 kW / 5.5 hp
  - voltage 230/400 V
  - speed 1430 rpm
  - rated current 8.47 A
  - protection class IP55
  - insulation class F
  - shaft Ø 28 x L 60 mm
  - mounting type B35 (distance between mounting holes 160 x 140 mm, hole Ø 12 mm)
  - applications: suitable for many flange-mounted devices, such as fans, pumps etc.

  B35:
  B5 flange mount with collar, i.e. with intermediate flanges, can be mounted on the shaft of the hydraulic pump motor.
  B3 means the motor also has "feet", i.e. it can be mounted like a standard motor. The feet can be removed if only the flange mount is used.

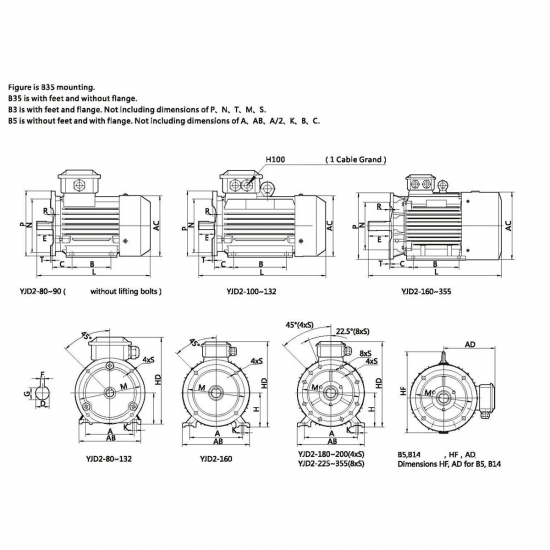

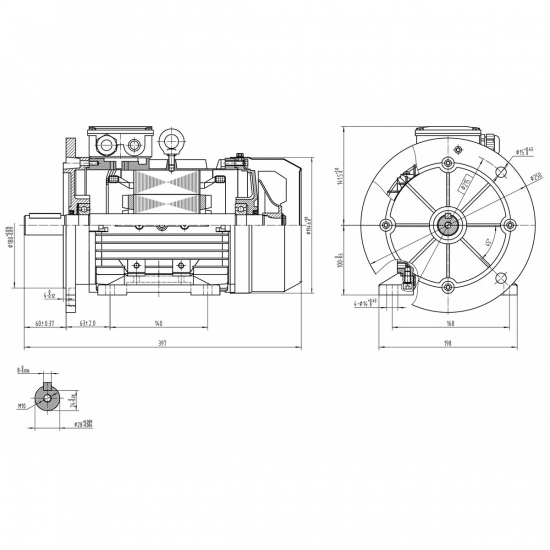

  Dimensions (mm):
  - A 160
  - B 140
  - C 63
  - D 28
  - E 60
  - F 8
  - G 24
  - H 100
  - K 12
  - M 215
  - N 180
  - P 250
  - R 0
  - S 15
  - T 4
  - AB 205
  - AC 215
  - AD 180
  - HD 270
  - HF 245
  - L 385
