Cultivator shaft -78400137

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID180101.7722LL

  Manufacturer

  CharacteristicsStrength: 10.9, L (mm): 70, Head-Ø (mm): 24, Thread-Ø (mm): 12, Dimensions (mm): M12x70, DIN 608, 10.9, Length (mm): 70, Quality: 10.9, Thread: M12x1.75, DIN: DIN 608

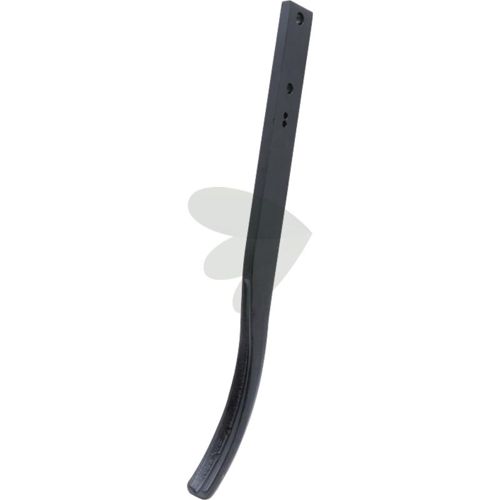

  Cultivator shaft suitable for BBG / Amazone and others.

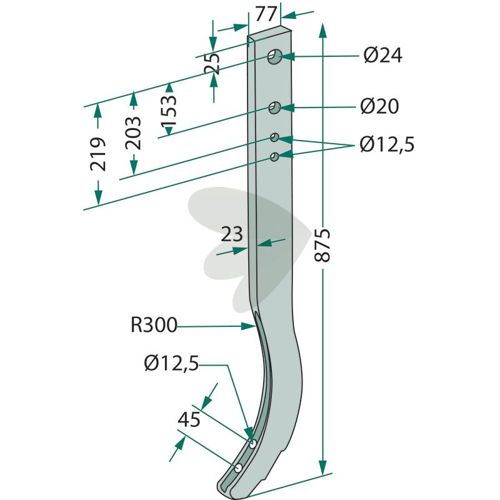

  Technical specification:
  Ø d2 (mm): 20
  L (mm): 875
  Ø d1 (mm): 24
  d3 (mm): 12.5
  Ø d4 (mm): 12.5
  A (mm): 153
  B (mm): 203
  C (mm): 219
  D (mm): 77
  E (mm): 45
  Assembly instructions: Screws and nuts must not be tightened with pneumatic tools as the wearing part may get damaged.
• Suitable for models
• Amazone Pegasus 300
  Amazone Pegasus 301
  Amazone Pegasus 400
  Amazone Pegasus 401
  Amazone Pegasus 501-2
  Amazone Pegasus 601-2

• Product groups
• Amazone
  Cultivator & S-Tine Harrow

• OEM part no.
• 78400360
  XL001
  78400137
