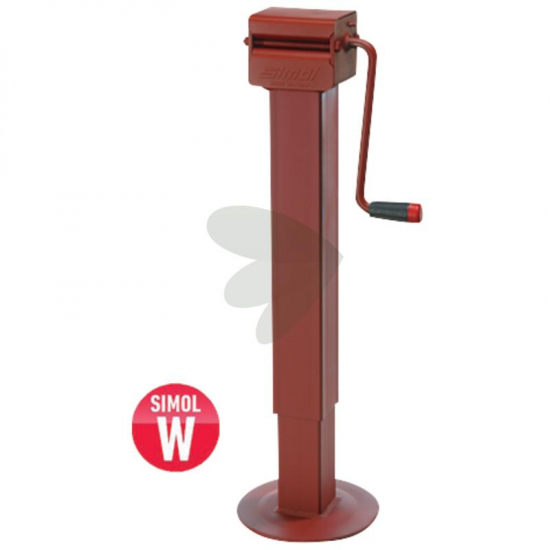

Trailer Support Leg 5440kg, Adjustment 300mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220DG706W

  ManufacturerSIMOL

  CharacteristicsWith side crank and reduction gearbox

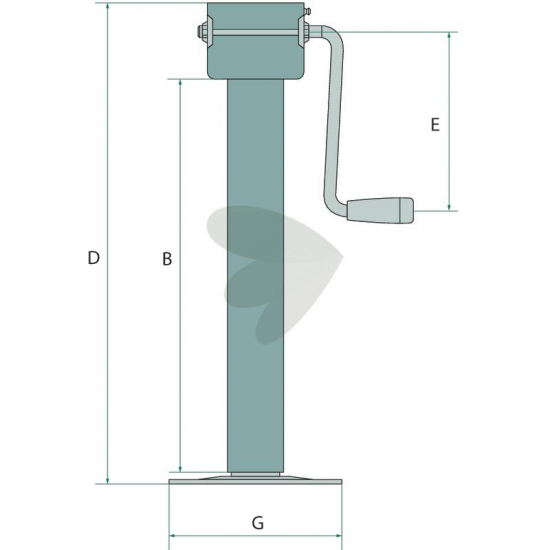

  B (mm): 500
  D (mm): 605
  E (mm): 225
  G (mm): 220
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Without
  Crank: Side
  Max. static load capacity (kg): 5440
  Spindle lift (+/- 10): 300
  Type: DG 706 W
  Equipment: With gearbox, two-speed
  Load gear 1 : 2.5
  Quick gear 1.19 : 1
  Crank rotation / 100 mm stroke
  SIMOL-W: Single gear
  3x faster
  70% time saving
  Up to 10% reduced effort
  Ergonomic handle, patented system
  Surface: Primed
  Outer Ø (mm): ? 80
