Trailer Support Leg 4535kg, Adjustment 300mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220DG706_3SFW

  ManufacturerSIMOL

  CharacteristicsWith side crank, three-stage

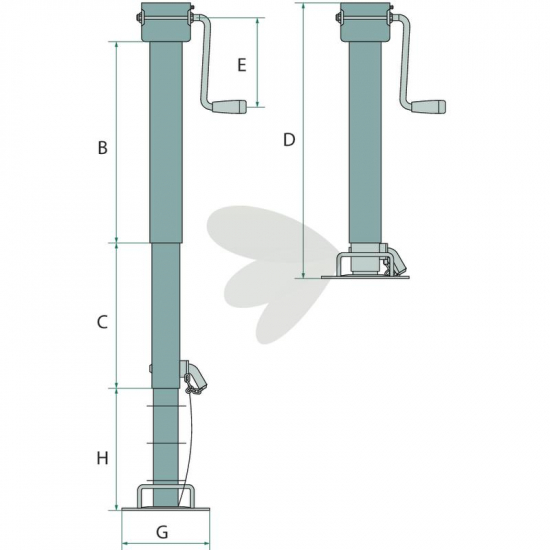

  B (mm): 500
  C (mm): 380
  D (mm): 685
  E (mm): 225
  G (mm): 220
  H (mm): 276
  Application: - Agricultural machines and trailers
  - Construction industry machines
  - Snow plows
  Mounting: Without
  Crank: Side
  Max. static load capacity (kg): 4535
  Menke-No.: 54516
  Spindle lift (+/- 10): 300
  Type: DG 706/3SFW
  Equipment: With gearbox, two-speed
  Three-stage
  Load gear 1 : 2.5
  Quick gear 1.19 : 1
  Crank rotation / 100 mm stroke
  SIMOL-W: An extra gear
  - 3x faster
  - 70% time saving
  - Up to 10% less effort during load cycle
  - Ergonomic handle, patented system
  Surface: Primed
  Outer Ø (mm): ? 80
