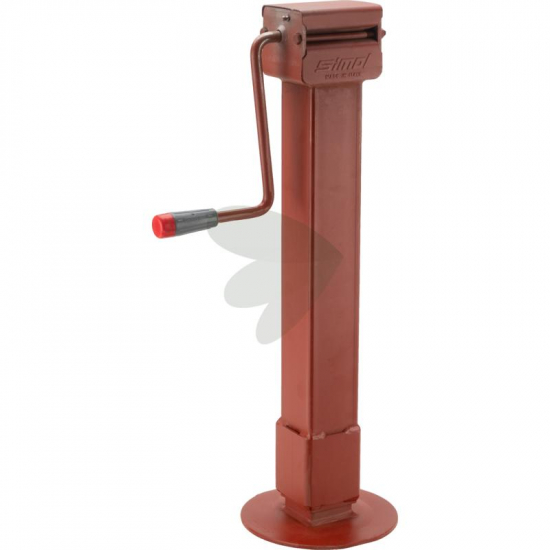

Trailer Support Leg 4000kg, Adjustment 475mm

• Info
• Stock status

  Product ID22000155

  ManufacturerSIMOL

  CharacteristicsWith side crank and reduction gearbox

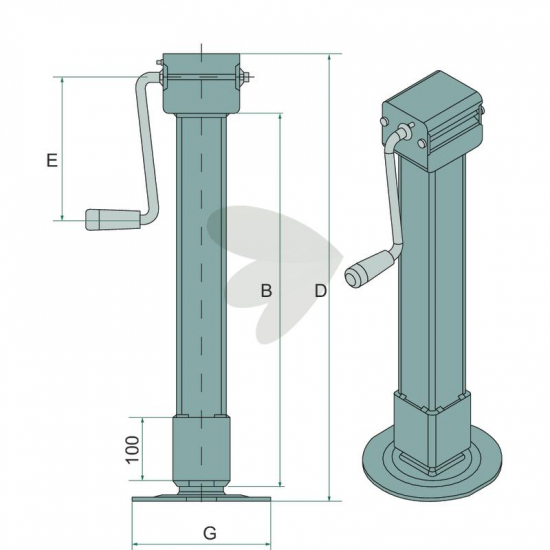

  B (mm): 600
  D (mm): 710
  E (mm): 225
  G (mm): 220
  Application: Agricultural machines and trailers, Construction machinery, Snow clearing machines
  Mounting: Without
  Crank: Side
  Max. static load capacity (kg): 4000
  Spindle lift (+/- 10): 475
  Type: DG 707/20
  Design: Primed
  Equipment: With reduction gearbox
  Ergonomic handle, patented system
  Surface: Primed
  Outer Ø (mm): 80
