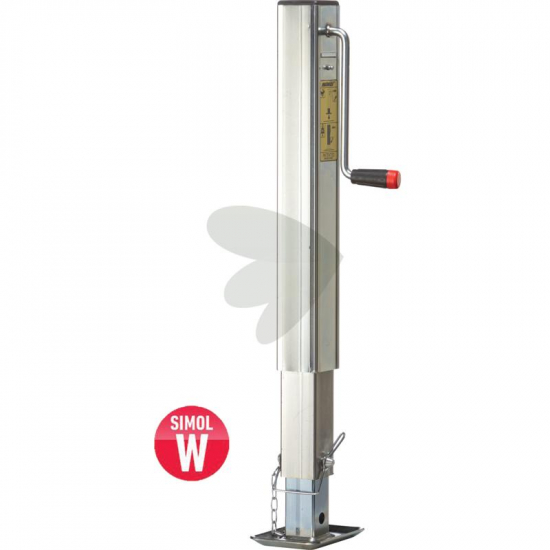

Trailer Support Leg 3270kg, Adjustment 300mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220DG600_3SFW

  ManufacturerSIMOL

  CharacteristicsWith side crank, three-stage

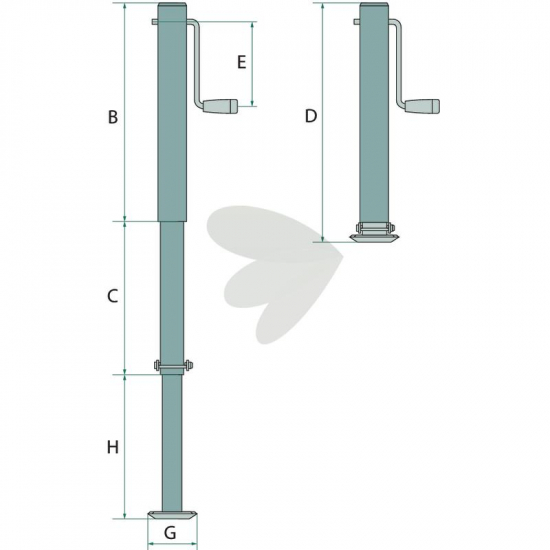

  B (mm): 545
  C (mm): 375
  D (mm): 635
  E (mm): 210
  G (mm): 120 x 165
  H (mm): 355
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Without
  Crank: Side
  Max. static load capacity (kg): 3270
  Spindle lift (+/- 10): 300
  Type: DG 600/3SFW
  Equipment: With gearbox, two-speed
  Three-stage
  Load gear 1 : 2
  Quick gear 1.33 : 1
  Crank rotation / 100 mm stroke
  SIMOL-W: Single gear
  3x faster
  70% time saving
  Up to 10% reduced effort
  Ergonomic handle, patented system
  Surface: Galvanized
  Outer Ø (mm): ? 70
