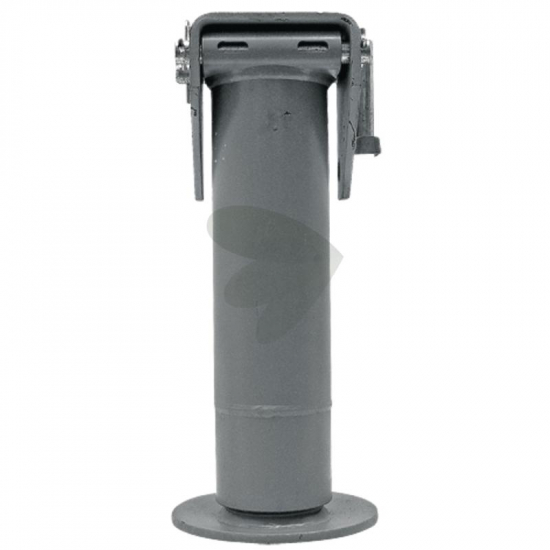

Hydraulic Trailer Support Leg 5470kg, Adjustment 250mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220DH713

  ManufacturerSIMOL

  CharacteristicsSingle-acting, with return spring

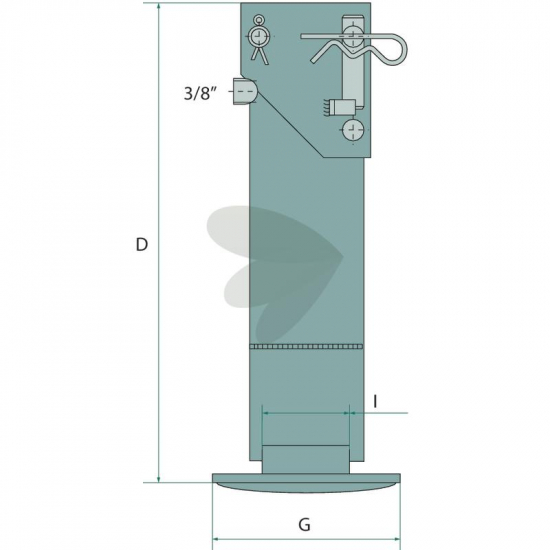

  D (mm): 445
  G (mm): 180
  I (mm): 85
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Flange plate
  Max. oil pressure (bar): 150
  Max. static load capacity (kg): 5470 / 100 bar
  Spindle lift (+/- 10): 250
  Type: DH 713
  Equipment: - With hinge
  - Single-acting
  - With internal return spring
  Surface: Primed
  Outer Ø (mm): Ø 100
