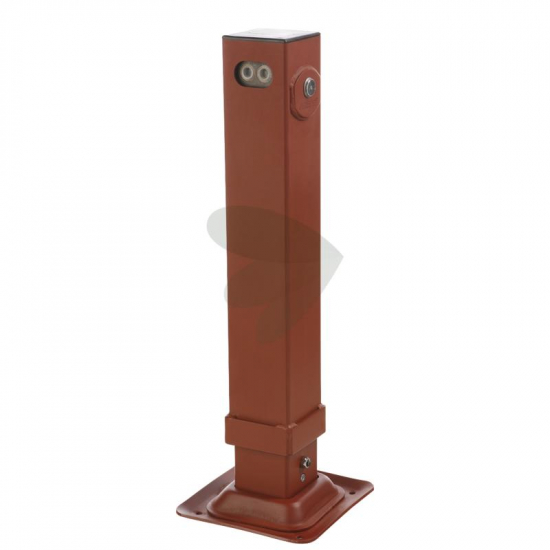

Hydraulic Trailer Support Leg 3800kg, Adjustment 500mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220H1150P

  ManufacturerSIMOL

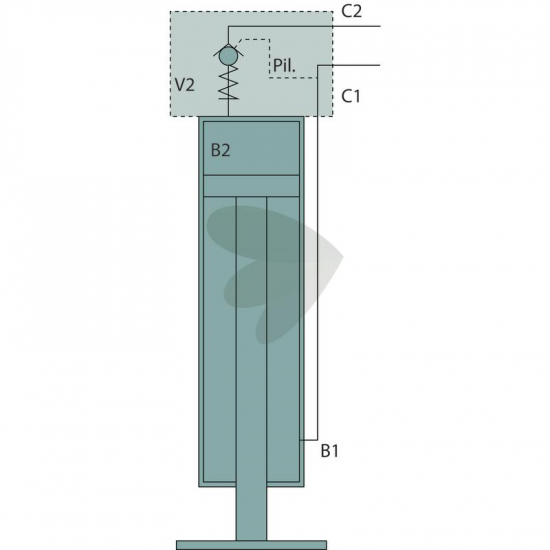

  CharacteristicsDouble-acting, with single shut-off valve

  B (mm): 735
  D (mm): 850
  G (mm): 250
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Without
  Max. oil pressure (bar): 200
  Max. static load capacity (kg): 3800 / 100 bar
  Menke-No.: 89049
  Spindle lift (+/- 10): 500
  Type: H 1150P
  Equipment: Double-acting
  With single shut-off valve
  Swiveling footplate
  Surface: Primed
  Outer Ø (mm): ? 110
