Hydraulic Trailer Support Leg 1950kg, Adjustment 400mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220H940

  ManufacturerSIMOL

  CharacteristicsDouble-acting, with single shut-off valve

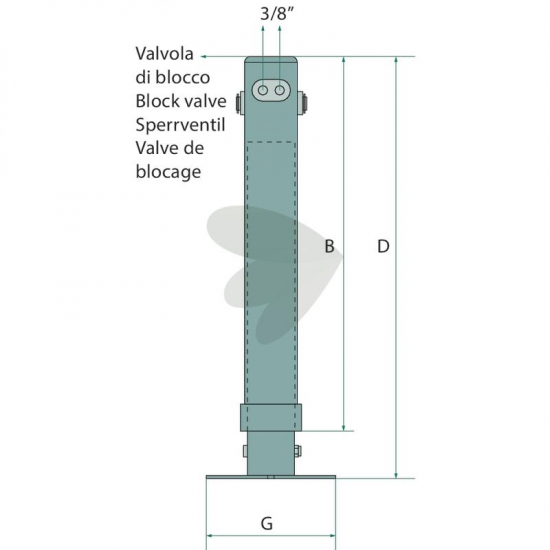

  B (mm): 630
  D (mm): 720
  G (mm): 220
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Without
  Max. oil pressure (bar): 200
  Max. static load capacity (kg): 1950 / 100 bar
  Menke-No.: 54519
  Spindle lift (+/- 10): 400
  Type: H 940
  Equipment: Double-acting
  With single shut-off valve
  Surface: Primed
  Outer Ø (mm): ? 90
