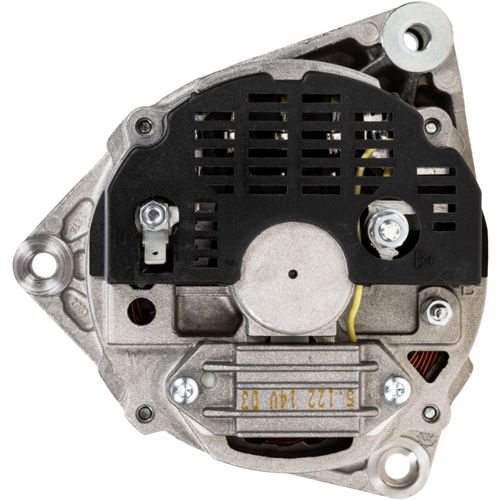

Alternator Mahle 55A 12V Zetor

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0217M

  ManufacturerMahle

  Characteristics

  - 55 A
  - 12 V
  - pulley with 1 groove Ø 76 mm
  - mounting hole Ø 8.2 mm
  - distance between mounting holes 50.8 mm
  - W contact

  General descriptions of the generator's terminals:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator's grounding to the battery's - terminal/chassis
  - IND, I, D+ = activating the generator via charging lamp
  - W = impulse terminal for electric tachometer
  - S = sensor for the battery's temperature sensor (Ford)
  - AUX = additional connection for extra equipment
  - F = field in DC generators
• Suitable for models
• Ursus 1134
  Ursus 1201
  Ursus 1204
  Ursus 1224
  Ursus 1634
  Ursus 902
  Ursus 904
  Ursus 912
  Ursus 914
  Ursus 932
  Ursus 934
  Ursus C-385
  Zetor 10045
  Zetor 10145
  Zetor 10245
  Zetor 12045
  Zetor 12145
  Zetor 12245
  Zetor 16045
  Zetor 16145
  Zetor 16245
  Zetor 8011
  Zetor 8045
  Zetor 8145
  Zetor 8245
