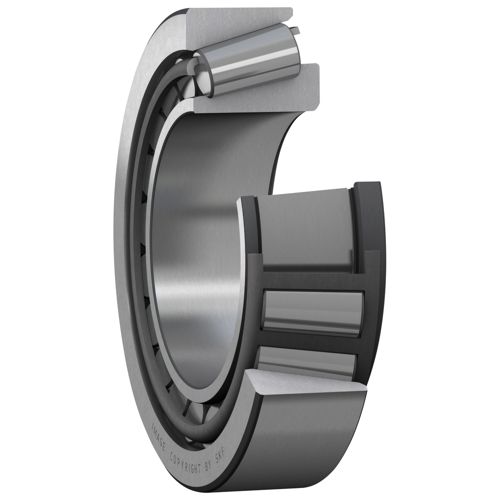

Tapered spherical roller bearing 70X110X25 SKF

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF32014X

  ManufacturerSKF

  Characteristics

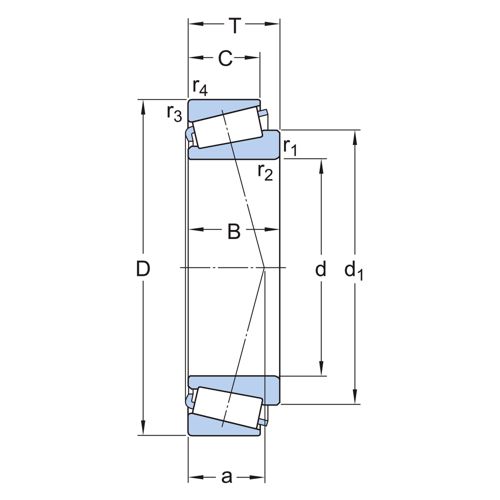

  Dimensions:
  - inner diameter (d) 70 mm
  - outer diameter (D) 110 mm
  - total width of the bearing (T) 25 mm
  - shoulder diameter of the inner ring (d1) 89.95 mm
  - width of the inner ring (B) 25 mm
  - width of the outer ring (C) 19 mm
  - corner radius of the inner ring (r1,2) min. 1.5 mm
  - corner radius of the outer ring (r3,4) min. 1.5 mm
  - pressure point distance (a) 23.4 mm

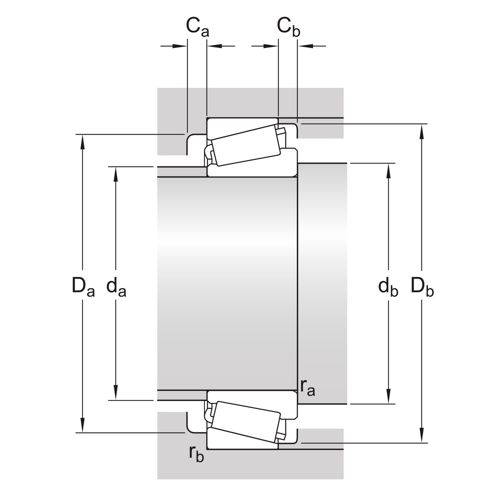

  Installation dimensions:
  - maximum installation diameter of the shaft (da) max. 78 mm
  - minimum installation diameter of the shaft (db) min. 79.5 mm
  - minimum installation diameter for housing (Da) min. 98 mm
  - maximum installation diameter for housing (Da) max. 101.5 mm
  - minimum installation diameter for housing (Db) min. 105 mm
  - minimum axial space on the large side plane/both sides of the outer ring (Ca) min. 5 mm
  - minimum axial space on the small side plane/both sides of the outer ring (Cb) min. 6 mm
  - max. inner radius (ra) max. 1.5 mm
  - max. outer radius (rb) max. 1.5 mm

  Calculated data:
  - dynamic load rating (C) 125 kN
  - static load rating (C0) 153 kN
  - fatigue load (Pu) 17.3 kN
  - reference speed 4500 rpm
  - limit speed 5600 rpm
  - calculation factor (e) 0.43
  - calculation factor (Y) 1.4
  - calculation factor (Y0) 0.8
• Suitable for models
• Valmet / Valtra 555
