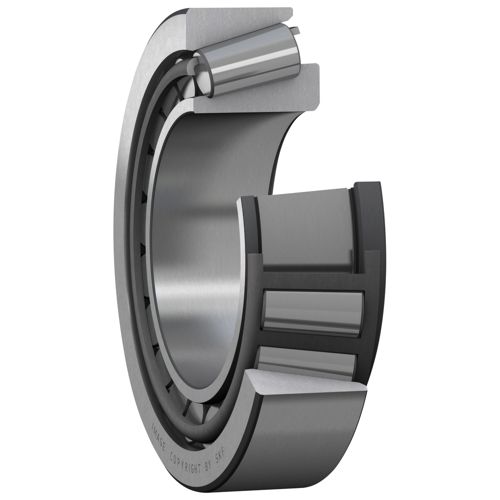

Tapered spherical roller bearing 65X100X23 SKF

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF32013X

  ManufacturerSKF

  Characteristics

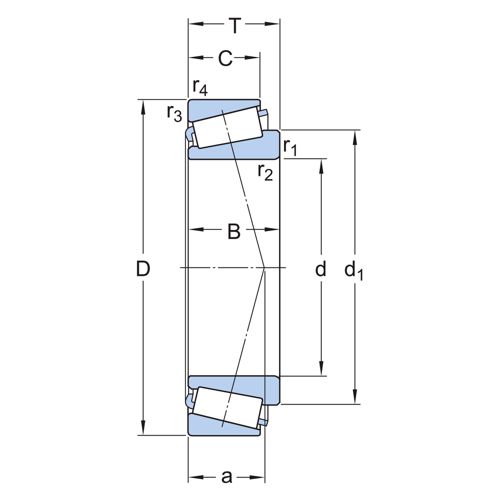

  Dimensions:
  - inner diameter (d) 65 mm
  - outer diameter (D) 100 mm
  - total width of the bearing (T) 23 mm
  - shoulder diameter of the inner ring (d1) 83.3 mm
  - width of the inner ring (B) 23 mm
  - width of the outer ring (C) 17.5 mm
  - corner radius of the inner ring (r1,2) min. 1.5 mm
  - corner radius of the outer ring (r3,4) min. 1.5 mm
  - pressure point distance (a) 22.12 mm

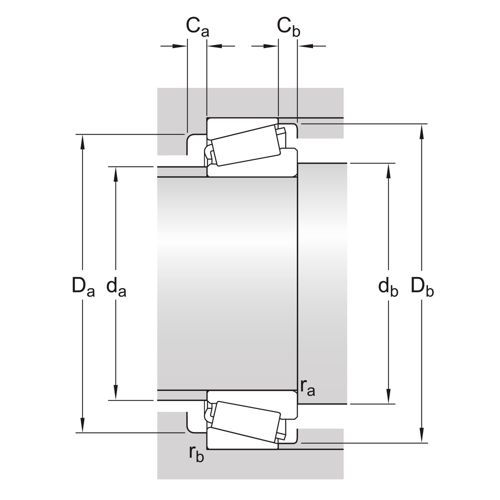

  Installation dimensions:
  - maximum installation diameter of the shaft (da) max. 73 mm
  - minimum installation diameter of the shaft (db) min. 74 mm
  - minimum installation diameter for housing (Da) min. 90 mm
  - maximum installation diameter for housing (Da) max. 92 mm
  - minimum installation diameter for housing (Db) min. 97 mm
  - minimum axial space on the large side plane/both sides of the outer ring (Ca) min. 4 mm
  - minimum axial space on the small side plane/both sides of the outer ring (Cb) min. 5.5 mm
  - max. inner radius (ra) max. 1.5 mm
  - max. outer radius (rb) max. 1.5 mm

  Calculated data:
  - dynamic load rating (C) 103 kN
  - static load rating (C0) 127 kN
  - fatigue load (Pu) 14 kN
  - reference speed 5000 rpm
  - limit speed 6000 rpm
  - calculation factor (e) 0.46
  - calculation factor (Y) 1.3
  - calculation factor (Y0) 0.7
• Suitable for models
• Valmet / Valtra 555
