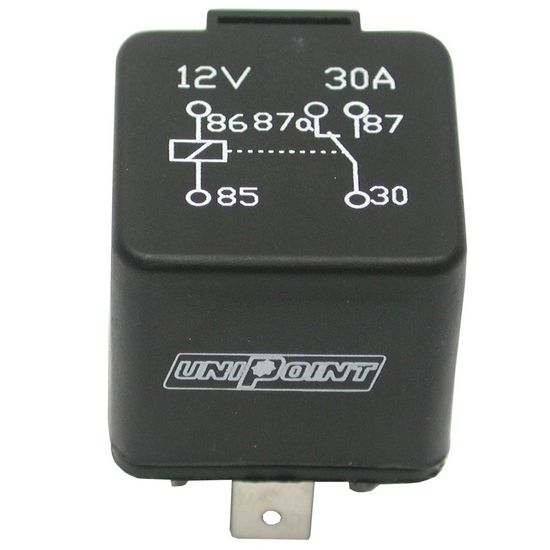

Relay 5-Pole 12V 20/30A Normally Open

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST050105

  Manufacturer

  Characteristics

  Clutch relay 12 V / 20/30 A.

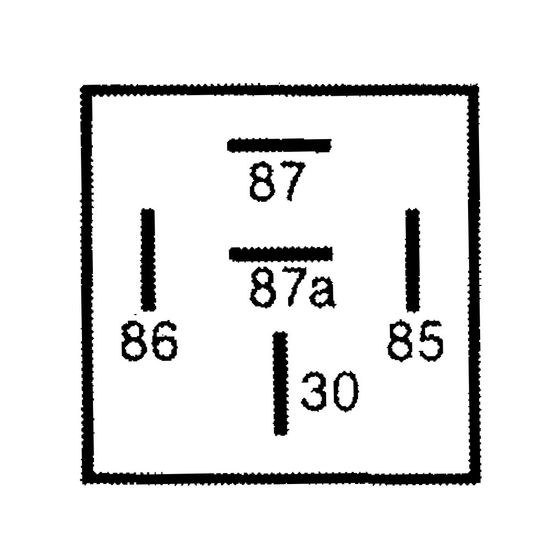

  Explanation:
  - 85 = coil ground
  - 86 = coil control voltage
  - 30 = main power
  - 87 = relay output when voltage is supplied to the coil
  - 87A = relay output when no voltage is supplied to the coil

  General clutch instructions:
  - 30 = main power
  - 31, 85 = ground
  - 49, X = blink relay input
  - 49A, L = blink relay output
  - 86 = control voltage
  - 87 = relay contact in opener and switch, input
  - 87A = first output
  - C = signal lamp (dashboard)
  - C2 = second signal lamp
  - C3 = third signal lamp
  - P= signal light
• Suitable for models
• Case IH 1056
  Case IH 1255
  Case IH 1455
  Case IH 3210
  Case IH 3220
  Case IH 3230
  Case IH 4210
  Case IH 4220
  Case IH 4230
  Case IH 4240
  Case IH 485
  Case IH 495
  Case IH 5220
  Case IH 5230
  Case IH 5240
  Case IH 5250
  Case IH 585
  Case IH 595
  Case IH 685
  Case IH 695
  Case IH 743
  Case IH 745
  Case IH 785
  Case IH 795
  Case IH 844
  Case IH 845
  Case IH 856
  Case IH 885
  Case IH 895
  Case IH 956
  Case IH 995
  Valmet / Valtra 2005
  Valmet / Valtra 205
  Valmet / Valtra 2105
  Valmet / Valtra 305
  Valmet / Valtra 405
  Valmet / Valtra 505
  Valmet / Valtra 605
  Valmet / Valtra 705
  Valmet / Valtra 805
  Valmet / Valtra 905

• Product groups
• International-Case IH
  Switches and Relays
  Valmet - Valtra

• OEM part no.
• CIH 146461C1
  CIH 1983394C1
