Alternator Mahle 80A 12V Nh

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0243M

  ManufacturerMahle

  Characteristics

  - 80 A
  - 14 V
  - delivered without pulley

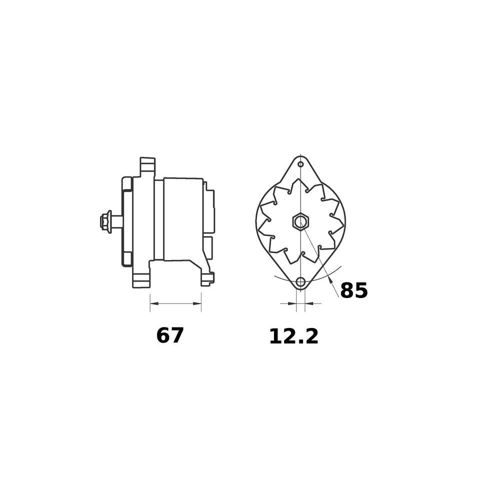

  - shaft 17 mm
  - mounting hole Ø 12.2 mm
  - distance between mounting holes 67 mm
  - W connector

  General descriptions of the generator pins:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator grounding to the battery's - terminal/chassis
  - IND, I, D+ = activation of generator via charge lamp
  - W = impulse pin for electric tachometer
  - S = sensor for battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• New Holland 4635
  New Holland 4835
  New Holland 5635
  New Holland 6635
  New Holland 7635
  New Holland L60
  New Holland L65
  New Holland L75
  New Holland L85
  New Holland L95
  New Holland TL100
  New Holland TL70
  New Holland TL80
  New Holland TL90
  New Holland TN55D
  New Holland TN65D
  New Holland TN75D
  Same Antares 100
  Same Explorer 65
  Same Explorer 70
  Same Explorer 75
  Same Explorer 80
  Same Laser 100
  Same Laser 110
  Same Laser 130
  Same Laser 150
  Same Laser 90
