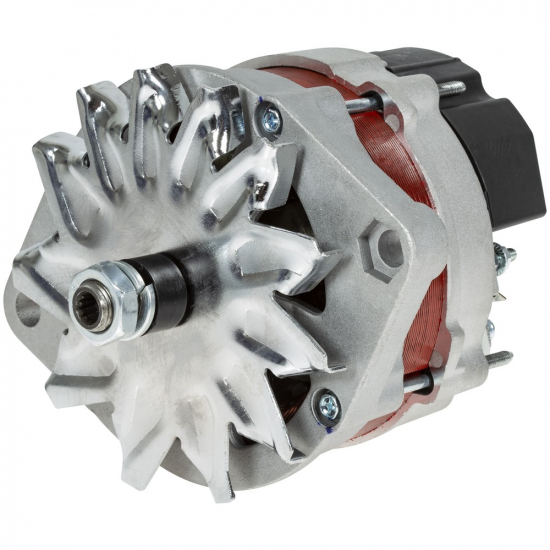

Alternator 70A 14V NH
€249 /
€224
Incl. VAT
- Info
-
Stock statusProduct IDST0243ManufacturerCharacteristicsAlternator that fits, among others, Ford / New Holland, Deutz-Fahr, Fiat, and Same.
Technical specifications:
- height 157.1 mm
- length 206.4 mm
- shaft length 30 mm
- mounting hole diameter 12.2 mm
- Weight: 5.04 kg
General descriptions of the alternator's pins:
- +, B+ = charging current to the battery's + pole
- D-, B- = the alternator's grounding to the battery's - pole/chassis
- IND, D+ = activation of the alternator at the charging signal light
- W = impulse pin for electric tachometer
- S = sensor for the battery's temperature sensor (Ford)
- AUX = extra connection for additional equipment
- F = field in direct current generators - Suitable for models
-
New Holland 4635
New Holland 4835
New Holland 5635
New Holland 6635
New Holland 7635
New Holland L60
New Holland L65
New Holland L75
New Holland L85
New Holland L95
New Holland TL100
New Holland TL70
New Holland TL80
New Holland TL90
New Holland TN55D
New Holland TN65D
New Holland TN75D
Same Antares 100
Same Explorer 65
Same Explorer 70
Same Explorer 75
Same Explorer 80
Same Laser 100
Same Laser 110
Same Laser 130
Same Laser 150
Same Laser 90
- Product groups
-
New Holland
Same
- OEM part no.
-
NH 4808498
NH 84522025
AGCO: 72277319
Bosch: 120489152
Bosch: 120489219
Case IH: 47906837
Case IH: 84296693
Case IH: 84402417
Case IH: 47906830
Case IH: 84402416
Case IH: 84402418
Case IH: 84402419
Case IH: 84296707
Claas: 6005712872
Fiat: 395250A1
Fiat: 99478834
Fiat: 47906830
Fiat: 47906837
Fiat: 84402419
Fiat: 84402416
Fiat: 99457034
Fiat: 84522025
Fiat: 84402417
Fiat: 84296693
Fiat: 84296707
Fiat: 84402418
Ford / New Holland: 99478834
Ford / New Holland: 47906837
Ford / New Holland: 84522025
Ford / New Holland: 84402419
Ford / New Holland: 84297514
Iskra: IA0463
IVECO: 99457074
IVECO: 99461495
Lester: 12281
Lester: 12048
Lester: 12581
Lester: 12583
Lester: 20750
Lucas: LRA01915
Same: 294393700
Same: 294393200
Same: 294395500
