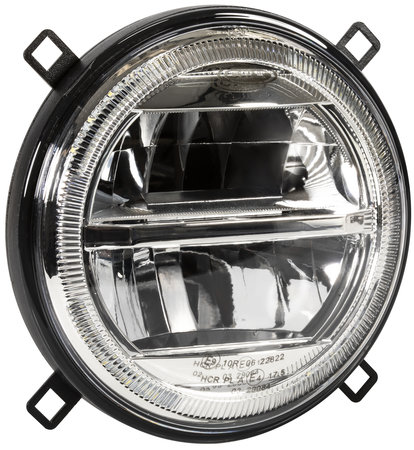

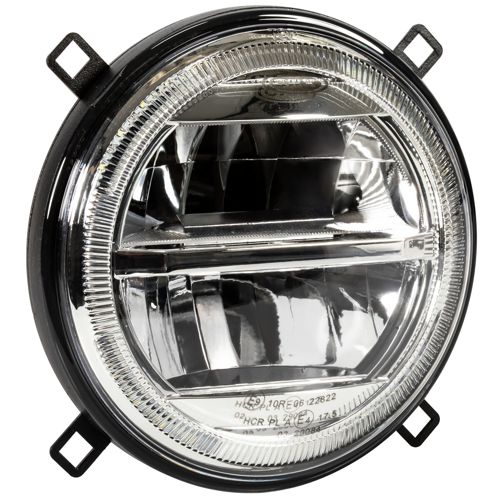

LED Headlight Round Ford 144MM

• Info
• Stock status

  Product IDST86258

  Manufacturer

  CharacteristicsLED Headlight for Ford

  - E-approved LED headlight with parking light
  - voltage 10 - 30 V DC
  - low beam luminous flux theoretical 1100 lm / practical 492 lm
  - low beam nominal power 16 W LED
  - low beam power consumption 12 V 1.33 A / 24 V 0.66 A
  - high beam luminous flux theoretical 2300 lm / practical 1460 lm
  - high beam nominal power 21 W LED
  - high beam power consumption 12 V 1.75 A / 24 V 0.88 A
  - position light nominal power 1.0 W LED
  - color temperature 5700 K
  - reference number 17.5
  - protection class IP66/IP69K
  - EMC CISPR 25 class 3 (provides very good interference protection)
  - service life 30000 h
  - housing in impact-resistant aluminum
  - UV-protected polycarbonate lens
  - H4 connector and separate parking light cable
  - operating temperature -40...+50 °C
  - temperature control
  - low voltage protection
  - reverse polarity protection
  - 4-point mounting, detachable mounting bracket
  - dimensions Ø 144 x 88 mm
• Suitable for models
• Case IH 485
  Case IH 585
  Case IH 685
  Case IH 785
  Case IH 85
  Case IH 885
  Ford 3430
  Ford 3910
  Ford 3910H
  Ford 3930
  Ford 4110
  Ford 4130
  Ford 4610
  Ford 4610H
  Ford 4630
  Ford 4830
  Ford 5030
  Ford 5110
  Ford 5610
  Ford 5610S
  Ford 6610
  Ford 7610
  Ford 7610S
  Ford 7710
  Ford 7810
  Ford 7810S

• Product groups
• Ford
  International-Case IH
  LED Headlights
