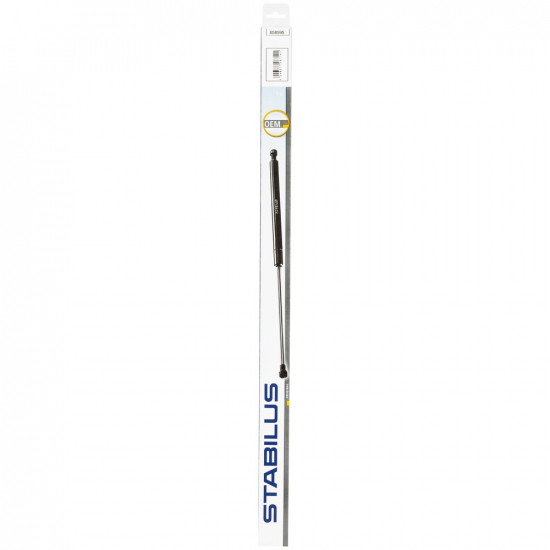

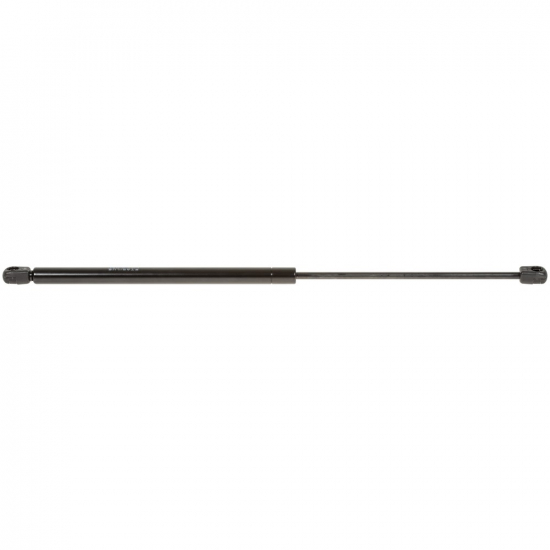

Gas spring 549x180N Rear window Case IH

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSS858595

  ManufacturerSTABILUS

  CharacteristicsStroke length: 234 mm

  Technical specification:
  - max. length L 549 mm
  - cylinder length 277 mm
  - stroke length 234 mm
  - cylinder end angle 10 mm
  - cylinder diameter Ø 18 mm
  - rod end angle 10 mm
  - rod diameter Ø 8 mm
  - force 180 N
  - mounted vertically e.g. in the rear window
  - with end damping
  - mount the cylinder rod downward
  - temperature range -30...+80 °C

  Stabilus is a manufacturer of high-quality gas springs in Germany. Tractor and machinery manufacturers around the world use Stabilus LIFT-O-MAT gas springs. Stabilus gas springs withstand extreme weather conditions thanks to excellent design and high-quality materials.
• Suitable for models
• Case IH 1055
  Case IH 1056
  Case IH 1255
  Case IH 1455
  Case IH 485
  Case IH 585
  Case IH 685
  Case IH 695
  Case IH 743
  Case IH 745
  Case IH 785
  Case IH 844
  Case IH 845
  Case IH 856
  Case IH 885
  Case IH 955
  Case IH 956

• Product groups
• Gas Dampers
  International-Case IH

• OEM part no.
• CIH 3234163R1
