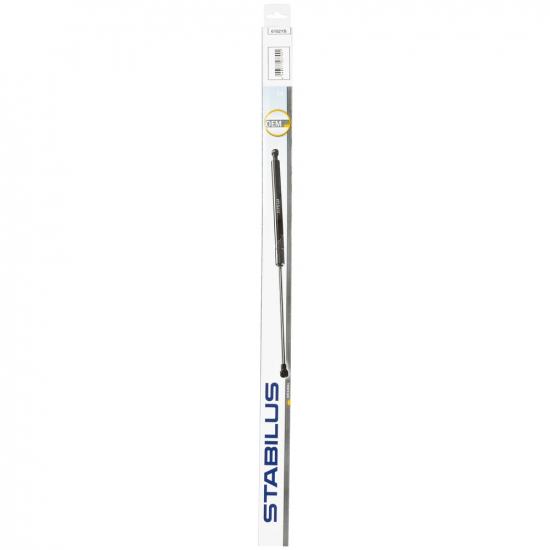

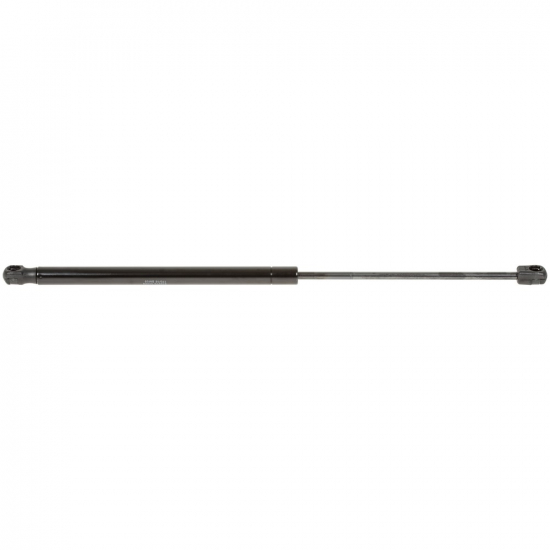

Gas spring 500x200N Rear window DB, Leyland

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSS6192YB

  ManufacturerSTABILUS

  CharacteristicsStroke length: 205 mm

  Technical specifications:
  - length L max. 500 mm
  - cylinder length 255 mm
  - stroke 205 mm
  - cylinder end angle 10 mm
  - cylinder diameter Ø 18 mm
  - rod end angle 10 mm
  - rod diameter Ø 8 mm
  - force 200 N
  - mounted vertically e.g. in the rear window
  - with end damping
  - install the cylinder rod downwards
  - temperature range -30...+80 °C

  Stabilus is a manufacturer of high-quality gas springs in Germany. Tractor and machinery manufacturers around the world use Stabilus LIFT-O-MAT gas springs. Stabilus gas springs withstand extreme weather conditions due to excellent design and high-quality materials.

  More information on compatibility:
  - Leyland tractor models with Sekura cab, for the rear window
• Suitable for models
• Case 1194
  Case 1394
  Case 1494
  Case 1694
  Case IH CS100
  Case IH CS110
  Case IH CS120
  Case IH CS130
  Case IH CS150
  Case IH CS78
  Case IH CS86
  Case IH CVX1135
  Case IH CVX1145
  Case IH CVX1155
  Case IH CVX120
  Case IH CVX130
  Case IH CVX150
  Case IH CVX170
  David Brown Case 1190
  David Brown Case 1290
  David Brown Case 1390
  David Brown Case 1490
  David Brown Case 1690
  Leyland 262
  Leyland 272
  Leyland 282
  Leyland 462
  Leyland 472
  Leyland 482
  Leyland 602
  Leyland 604
  Leyland 702
  Leyland 704
  Leyland 802
  Leyland 804
  Leyland 904
