Ball bearing 75X115X20 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6015-2RS1C3

  Manufacturer

  Characteristics

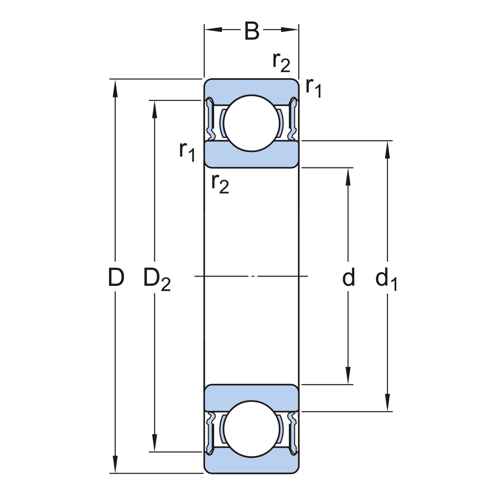

  Dimensions:
  - bore diameter (d) 75 mm
  - outer diameter (D) 115 mm
  - width (B) 20 mm
  - inner ring shoulder diameter (d1) 87.85 mm
  - diameter for shoulder clearance of outer ring (D2) 104.9 mm
  - outer ring chamfer (r1,2) min. 1.1 mm

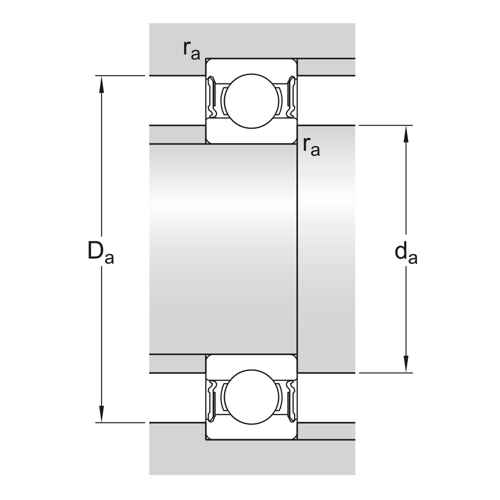

  Installation dimensions:
  - shaft fitting diameter (da) min. 81 mm
  - shaft fitting diameter (da) max. 87.8 mm
  - housing fitting diameter (Da) max. 109 mm
  - fillet radius (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 41.6 kN
  - static load rating (C0) 33.5 kN
  - fatigue load limit (Pu) 1.43 kN
  - limiting speed 3400 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 15.8
• Suitable for models
• Case IH 1046
  Case IH 1055
  Case IH 1056
  Case IH 1246
  Case IH 1255
  Case IH 1455
  Case IH 523
  Case IH 553
  Case IH 554
  Case IH 564
  Case IH 644
  Case IH 654
  Case IH 724
  Case IH 734
  Case IH 743
  Case IH 744
  Case IH 745
  Case IH 754
  Case IH 824
  Case IH 834
  Case IH 844
  Case IH 845
  Case IH 856
  Case IH 955
  Case IH 956
  Deutz-Fahr DX3.65
  Deutz-Fahr DX3.65SC
  Deutz-Fahr DX3.65VC
  Deutz-Fahr DX3.70
  Deutz-Fahr DX3.70C
  Deutz-Fahr DX3.70VC
  Deutz-Fahr DX3.70VF
  Leyland 702
  Leyland 704
  Leyland 802
  Leyland 804

• Product groups
• Deutz - Fahr
  International-Case IH
  Nuffield - Leyland
