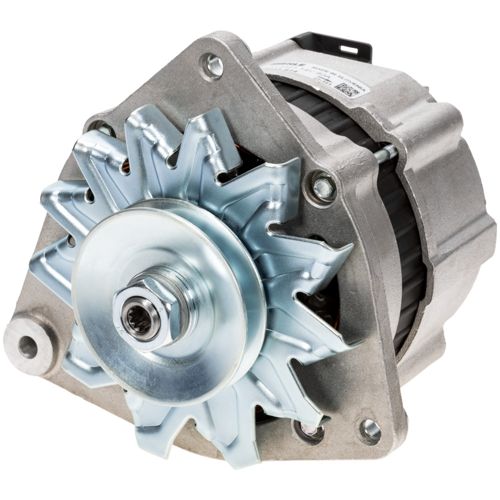

Alternator Mahle 80A 12V Case

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0234M

  ManufacturerMahle

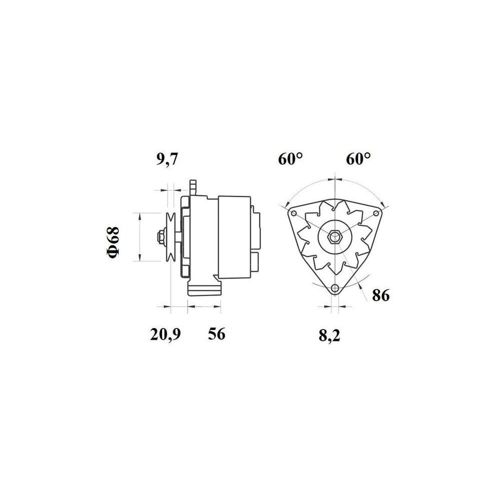

  Characteristics

  - 80 A
  - 14 V
  - pulley with 1 groove Ø 68 mm
  - shaft 17 mm
  - mounting hole Ø 8.2 mm
  - distance between mounting holes 56 mm

  General descriptions of the generator pins:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator grounding to the battery's - terminal/chassis
  - IND, I, D+ = activation of generator via charge lamp
  - W = impulse pin for electric tachometer
  - S = sensor for battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• Case IH 1046
  Case IH 1055
  Case IH 1056
  Case IH 1246
  Case IH 1255
  Case IH 1455
  Case IH 745
  Case IH 844
  Case IH 844S
  Case IH 845
  Case IH 856
  Case IH 946
  Case IH 955
  Case IH 956
  Claas Consul
  Claas Dominator 48
  Claas Dominator 48S
  Claas Dominator 58S
  Claas Dominator 66
  Claas Dominator 68S
  Claas Dominator 76
  Claas Dominator 78S
  Claas Dominator 78S Classic
  Claas Dominator 78SL Classic
  Claas Dominator 85
  Claas Dominator 86
  Claas Dominator 96
  Claas Jaguar 70 SF
  Claas Mercator 60
  Claas Mercator 75
  Deutz-Fahr 4.56
  Deutz-Fahr 6.16
  Deutz-Fahr 6.17
  Deutz-Fahr DX110
  Deutz-Fahr DX120
  Deutz-Fahr DX3.10
  Deutz-Fahr DX3.10SC
  Deutz-Fahr DX3.10V
  Deutz-Fahr DX3.10VC
  Deutz-Fahr DX3.30
  Deutz-Fahr DX3.30SC
  Deutz-Fahr DX3.30VC
  Deutz-Fahr DX3.30VF
  Deutz-Fahr DX3.60
  Deutz-Fahr DX3.60SC
  Deutz-Fahr DX3.90
  Deutz-Fahr DX3.90F
  Deutz-Fahr DX3.90FS
  Deutz-Fahr DX3.90S
  Deutz-Fahr DX3.90SC
  Deutz-Fahr DX3.90VC
  Deutz-Fahr DX36
  Deutz-Fahr DX50
  Deutz-Fahr DX55
  Deutz-Fahr DX6.50
  Deutz-Fahr DX7.10
  Deutz-Fahr DX80
  Deutz-Fahr DX85
  Deutz-Fahr DX86
  Deutz-Fahr DX90
  Deutz-Fahr DX92
  Deutz-Fahr INtrac 6.30
  Fendt 104
  Fendt 104 L
  Fendt 104 LS
  Fendt 104 LSA
  Fendt 104 S
  Fendt 104 SA
  Fendt 105
  Fendt 105 LS
  Fendt 105 LSA
  Fendt 105 S
  Fendt 105 SA
  Fendt 106
  Fendt 106 LS
  Fendt 106 LSA
  Fendt 106 S
  Fendt 106 SA
  Fendt 108
  Fendt 108 LS
  Fendt 108 LSA
  Fendt 108 S
  Fendt 108 SA
  Fendt 304
  Fendt 304 LS
  Fendt 304 LSA
  Fendt 305
  Fendt 305 LS
  Fendt 305 LSA
  Fendt 306
  Fendt 306 LS
  Fendt 306 LSA
  Fendt 306 S
  Fendt 307
  Fendt 307 C
  Fendt 307 LS
  Fendt 307 LSA
  Fendt 308
  Fendt 308 C
  Fendt 308 LS
  Fendt 308 LSA
  Fendt 308 S
  Fendt 309
  Fendt 309 C
  Fendt 309 LS
  Fendt 309 LSA
  Fendt 309L
  Fendt 310
  Fendt 310 LS
  Fendt 310 LSA
  Fendt 311
  Fendt 311 LS
  Fendt 311 LSA
  Fendt 509 C
  Fendt 510 C
  Fendt 511 C
  Fendt 512 C
  Fendt 514 C
  Fendt 515 C
  Fendt 600 LS
  Fendt 600 LSA
  Fendt 600 S
  Fendt 610 LS
  Fendt 610 LSA
  Fendt 610 S
  Fendt 610 SA
  Fendt 611 LS
  Fendt 611 LSA
  Fendt 611 S
  Fendt 611 SA
  Fendt 612 LS
  Fendt 612 LSA
  Fendt 612 SA
  Fendt 614 LS
  Fendt 614 LSA
  Fendt 614 SA
  Fendt 615 LS
  Fendt 615 LSA
  Fendt 615 SA
  New Holland Clayson 8060
  New Holland Clayson 8080

• Product groups
• Deutz - Fahr
  Fendt
  Harvesters
  International-Case IH
